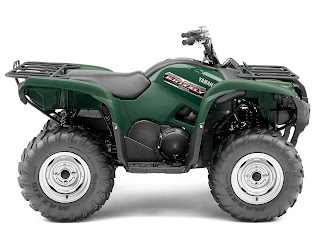

2013 Yamaha Grizzly 550 FI Auto 4x4

Grizzly 550 gets it done. All the reliability and durability of its bear brethren in a performance-laden, value-minded package.

The Ultimate trail machine or second set of "hands" around the farm, the 2013 Yamaha Grizzly 550 tackles the toughest chores and roughest terrain with On Command 2WD/4WD, Ultramatic automatic transmission and more.

2013 Yamaha Grizzly 550 FI Auto 4x4 Review

Featuring a 558cc fuel injected 4 stroke engine, Yamaha's Ultramatic Transmission, On-Command 4WD, 4-disc brakes and Yamaha's unbeatable reliability and durability.

Our Grizzly 550 FI comes standard with a powerful fuel injected engine for easy cold starting, superior ground clearance to get you over any terrain, and 4-wheel disc brakes combined with full-time engine braking means slowing down requires less effort.

Throw in Yamaha's exclusive Ultramatic® transmission and On-Command drive selection and you've got an ultimate all terrain vehicle.

2013 Yamaha Grizzly 550 FI Auto 4x4 Key Features:

• The 550cc class leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI. It boasts a largest-in-class 558cc powerplant, Electric Power Steering and more making it an excellent value.
• Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
• Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode.
• Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD—all with a simple push of a button.
• Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
• Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.
• The Grizzly 550 boasts the lightest weight in its class at only 648 pounds wet weight.

2013 Yamaha Grizzly 550 FI Auto 4x4 Features and Benefits:

• This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
• Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
• Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
• Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
• Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
• Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
• Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
• High-capacity radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
• Five-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic transmission control.
• Sealed drive case keeps out water and debris to help increase durability.
• Oil access cover allows easy access to check oil level.

Chassis/Suspension:

• Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
• Front and rear lower A-arm guards offer excellent protection —and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that’s 5 inches wider than that provided by ordinary designs.
• Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
• Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
• CV boots are made of tough polyethylene for more durability than typical rubber boots.
• Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
• 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there’s a 4.8-liter water-resistant storage compartment under there, too.
• 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
• 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling and excellent comfort.
•Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.

Additional Features:

• Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine’s running hours, 4WD status, transmission position, clock and fuel gauge.
• Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
• Fenders have a textured finish that resist scratching and scuffing.
• Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
• Dual 35-watt multireflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.
• Assembled in Newnan, GA, U.S.A.

2013 Yamaha Grizzly 550 FI Auto 4x4
USA Specifications
USA MSRP: $7,999 (Hunter Green) Available from June 2012; $7,999 (Steel Blue) Available from June 2012; $8,449 (Realtree AP HD Camo) Available from June 2012

Engine
Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 92.0 x 84.0mm
Compression Ratio 9.3:1
Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
Ignition TCI, 32-bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
Chassis
Suspension / Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT25 x 8-12
Tires / Rear AT25 x 10-12
Dimensions
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 10.8 in
Fuel Capacity 5.3 gal
Wet Weight 648 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb
Other
Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)

2013 Yamaha Grizzly 550 FI Auto 4x4
Canada Specifications
Canadian MSRP: $8,999 CDN

Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 558 cc
Bore and Stroke 92mm x 84 mm
Compression Ratio 9.3 : 1
Carburetion Mikuni Electronic Fuel Injection w/40mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI with 32 bit ECU
Starting electric w/auto-decompression
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive

Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) hydraulic discs
Brakes (Rear) hydraulic discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12

Length 2065 mm (81.3")
Width 1180 mm (46.5")
Height 1240 mm (48.8")
Wheelbase 1250 mm (49.2")
Ground Clearance 300 mm (11.8")
Seat Height 905 mm (35.6")
Wet Weight 294 kg (648 lb) - ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Dark Blue
Warranty One year (unlimited mileage)

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.

** Provincial regulations may require additional equipment for use on public trails.

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 Yamaha Grizzly 450 Auto 4x4 EPS ATV PICTURES and specs

2013 Yamaha Grizzly 450 Auto 4x4 EPS

Ultimate real world mid-class performance. - A mid-class, full-featured performer, the Grizzly 450 boasts all the top-of-the-line features including EPS.

The mid-class 2013 Yamaha Grizzly 450 features nearly everything the big bore bears boast, including Ultramatic automatic transmission, On-Command 2WD/4WD, EPS and more.

2013 Yamaha Grizzly 450 Auto 4x4 EPS Review

2013 Yamaha Grizzly 450 Auto 4x4 EPS Key Features:

• Grizzly 450 Automatic 4x4 EPS has many of the same great features as big brothers Grizzly 700 and 550, including electric power steering, four-wheel independent suspension, and powered by a fuel-efficient, liquid-cooled engine.

• Steel Blue model includes cast aluminum wheels that not only reduce weight, but add to the Grizzly’s tough styling.

• Electric Power Steering system lightens steering for superior comfort and terrainability.

• Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.

• Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.

• Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.

• Ground clearance of 10.8 and a composite plastic skidplate provide terrainability and undercarriage protection.

• Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position and clock.

• Rear wet brake is a multi-disc system running in gear oil inside a sealed unit. This keeps out the elements (such as mud and water) while providing powerful, consistent stopping power, and greatly reduced maintenance.

2013 Yamaha Grizzly 450 Auto 4x4 EPS Features and Benefits:

• 421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.

• Electric Power Steering system lightens steering for superior comfort and less rider fatigue.

• Semi-oval slide 33mm BSR Mikuni® carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.

• Pushbutton electric starting.

• Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.

• Left-side–mounted (Hi/Lo/N/R/P) shift lever is easily accessible.

• Large-capacity radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.

• Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.

• Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.

• Specially designed drive system air intake vent helps prevent overheating and keeps water and mud from entering drive case.

• Tool-free air filter box for easy access and quick maintenance.

Chassis/Suspension:

• Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.

• Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.

• Fully independent four-wheel suspension features a doublewishbone suspension front and rear delivering 6.3 inches and 7.1 inches of travel.

• Using a newly-designed multi-disc system running in gear oil, the sealed rear wet brake combines strong, consistent stopping power and greatly reduced maintenance requirements.

• Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.

• Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.

• Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won’t dent or rust.

Additional Features:

• Grizzly 700-inspired front-end styling boasts convenient water-resistant storage compartment on the front fender.

• The water-resistant DC outlet is located to the side of the multifunction instrument panel for convenient access; automotive style receptacle handles a wide range of accessories.

• Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).

• Available in Realtree® AP™ camouflage with a water-dipped process for durability.

• Large-capacity, 4-gallon fuel tank has a built-in gauge and easy-to-reach petcock valve.

• Water-resistant, large-capacity underseat storage box provides added convenience.

• Wide, fully integrated floorboards keep rider’s feet dry and feature serrated footpegs for extra grip in wet conditions.

• Large front and rear fenders with inner guards offer excellent mud/splash protection.

• Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.

• Dual, bright multireflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.

• Assembled in Newnan, GA, U.S.A.

2013 Yamaha Grizzly 450 Auto 4x4 EPS
USA Specifications

USA MSRP: $7,499 (Hunter Green) Available from August 2012; $7,799 (Steel Blue w/Aluminum Wheels) Available from August 2012; $7,849 (Realtree AP HD Camo) Available from July 2012

Engine

Type 421cc, 4-stroke, liquid-cooled single; SOHC

Bore x Stroke 84.5 x 75.0mm

Compression Ratio 10.0:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC-CDI

Starting System Electric

Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P

Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis

Suspension / Front Independent double wishbone; 6.3-in travel

Suspension / Rear Independent double wishbone; 7.1-in travel

Brakes / Front Dual hydraulic disc

Brakes / Rear Sealed oil bathed, multi disc

Tires / Front AT25 x 8-12

Tires / Rear AT25 x 10-12

Dimensions

L x W x H 78.5 x 43.0 x 44.1 in

Seat Height 33.1 in

Wheelbase 48.5 in

Turning Radius 118 in

Ground Clearance 10.8 in

Fuel Capacity 4.0 gal

Wet Weight 620 lb

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1322 lb

Other

Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, gear position and fuel gauge

Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 Yamaha Grizzly 450 Auto 4x4 Auto Insurance Information

2013 Yamaha Grizzly 450 Auto 4x4

Ultimate real world mid-class performance. - The Grizzly 450 features the ideal mix of off-road capability, reliability and comfort in a rugged, mid-size package.

The 2013 Grizzly 450 tackles touch terrain and even tougher chores with a host of Yamaha exclusive features including full automatic Ultramatic transmission, On Command 2WD/4WD with Diff Lock, rear sealed wet brake and more, all in a great handling package.

2013 Yamaha Grizzly 450 Auto 4x4 Key Features:

• Grizzly 450 Automatic 4x4 has many of the same great features as big brothers Grizzly 700 and 550, including four-wheel independent suspension, and it’s powered by a fuel-efficient, liquid-cooled engine.

• Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.

• Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD—all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.

• Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear.

• Ground clearance of 10.8 inches and a composite plastic skidplate provide terrainability and undercarriage protection.

• Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position and clock.

• Rear wet brake is a multi-disc system running in gear oil inside a sealed unit. This keeps out the elements (such as mud and water) while providing powerful, consistent stopping power and greatly reduced maintenance.

2013 Yamaha Grizzly 450 Auto 4x4 Features and Benefits:

• 421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.

• Semi-oval slide 33mm BSR Mikuni® carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.

• Pushbutton electric starting.

• Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.

• Left-side–mounted (Hi/Lo/N/R/P) shift lever is easily accessible.

• Large-capacity radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.

• Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.

• Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.

• Specially designed drive system air intake vent helps prevent overheating and keeps water and mud from entering drive case.

• Tool-free air filter box for easy access and quick maintenance.

Chassis/Suspension:

• Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.

• Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.

• Fully independent four-wheel suspension features a double wishbone suspension front and rear delivering 6.3 inches and 7.1 inches of travel.

• Using a newly-designed multi-disc system running in gear oil, the sealed rear wet brake combines strong, consistent stopping power and greatly reduced maintenance requirements.

• Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.

• Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.

• Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won’t dent or rust.

Additional Features:

• Grizzly 700-inspired front-end styling boasts convenient water-resistant storage compartment on the front fender.

• The water-resistant DC outlet is located to the side of the multifunction instrument panel for convenient access; automotive style receptacle handles a wide range of accessories.

• Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).

• Available in Realtree® AP™ camouflage with a water-dipped process for durability.

• Large-capacity, 4-gallon fuel tank has a built-in gauge and easy-to-reach petcock valve.

• Water-resistant, large-capacity underseat storage box provides added convenience.

• Wide, fully integrated floorboards keep rider’s feet dry and feature serrated floorboards for extra grip in wet conditions.

• Large front and rear fenders with inner guards offer excellent mud/splash protection.

• Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.

• Dual, bright multireflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.

•Assembled in Newnan, GA, U.S.A.

2013 Yamaha Grizzly 450 Auto 4x4
USA Specifications

USA MSRP: $6,899 (Hunter Green) Available from July 2012; $6,899 (Steel Blue) Available from July 2012; $7,249 (Realtree AP HD Camo) Available from September 2012

Engine

Type 421cc, 4-stroke, liquid-cooled single; SOHC

Bore x Stroke 84.5mm x 75.0mm

Compression Ratio 10.0:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC-CDI

Starting System Electric

Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P

Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis

Suspension / Front Independent double wishbone; 6.3-in travel

Suspension / Rear Independent double wishbone; 7.1-in travel

Brakes / Front Dual hydraulic discs

Brakes / Rear Sealed oil bathed, multi disc

Tires / Front AT25x8-12

Tires / Rear AT25x10-12

Dimensions

Length 78.5 x 43.0 x 44.1 in

Seat Height 33.1 in

Wheelbase 48.5 in

Turning Radius 118 in

Ground Clearance 10.8 in

Fuel Capacity 4.0 gal

Wet Weight 606 lb

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1322 lb

Other

Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, gear position and fuel gauge

Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 Yamaha Grizzly 350 Auto 4x4 ATV pictures

2013 Yamaha Grizzly 350 Auto 4x4

Mid-size stance, full-featured skill set.

The Grizzly 350 touts toughness with the help of an Ultramatic automatic transmission, On Command 4WD and more.

2013 Yamaha Grizzly 350 Auto 4x4 Review

Boasting 348cc of air cooled, bullet proof power and performance, the 2013 Yamaha Grizzly 350 is assembled in the USA and also features Ultramatic automatic transmission and on-command 2WD/4WD.

2013 Yamaha Grizzly 350 Auto 4x4 Key Features:

• The power-packed, full-featured Grizzly 350 Automatic 4x4 solid axle carries a lot of advanced Yamaha ATV technology in an affordable package.

• Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.

• Class-exclusive On-Command® 4WD means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.

• Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.

• Left-side-mounted F/N/R shift lever keeps throttle hand free while shifting.

• Wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.

• Large-diameter ventilated hydraulic dual front disc and single rear drum brakes deliver tremendous stopping power in a variety of conditions.

• Aggressive 25x8-12 front and 25x10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.

2013 Yamaha Grizzly 350 Auto 4x4 Features and Benefits:

• Rugged and reliable 348cc air/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.

• Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.

• Pushbutton electric starting.

• Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.

• Sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.

• Automatic cam chain tensioner reduces engine maintenance.

Chassis/Suspension:

• Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.

• 9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.

• Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.

• 32.6-inch seat height for great handling.

• Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.

• Sturdy steel swingarm and single rear shock feature five-way adjustable preload and 7.1 inches of travel.

• Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.

Additional Features:

• Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).

• Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.

• Large front and rear fenders with inner guards offer excellent mud/splash protection.

• Water-resistant, large-capacity underseat storage box provides added convenience.

• Plush, specially designed seat is widely contoured for incomparable rider comfort.

• Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.

• Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.

• Easy-access, tool-free air filter box allows for quick maintenance.

• Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.

• Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.

• Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.

• Easy, handlebar-mounted choke lever.

• Assembled in Newnan, GA, U.S.A.

2013 Yamaha Grizzly 350 Auto 4x4
USA Specifications

USA MSRP: $5,599 (Hunter Green) Available from June 2012; $5,599 (Steel Blue) Available from June 2012; $5,599 (Red) Available from June 2012; $5,949 (Realtree AP HD Camo) Available from June 2012

Engine

Type 348cc, 4-stroke, air/oil-cooled single; SOHC

Bore x Stroke 83.0mm x 64.5mm

Compression Ratio 9.2:1

Fuel Delivery Mikuni® 33mm BSR

Ignition DC - CDI

Starting System Electric

Transmission Yamaha Ultramatic® V-belt with front/rear-wheel engine braking/F, N, R

Drive Train Yamaha On-Command® pushbutton; 2WD, 4WD; shaft drive

Chassis

Suspension / Front Independent double wishbone; 6.3-in travel

Suspension / Rear Swingarm; 7.1-in travel

Brakes / Front Dual hydraulic discs

Brakes / Rear Fully sealed drum

Tires / Front AT25x8-12

Tires / Rear AT25x10-12

Dimensions

L x W x H 78.1 x 42.7 x 44.1 in

Seat Height 32.6 in

Wheelbase 48.5 in

Turning Radius 118 in

Ground Clearance 9.7 in

Fuel Capacity 3.8 gal

Wet Weight 568 lb

Rack Capacity 88 lb Fr./176 lb Rr.

Towing Capacity 1102 lb

Other

Instrumentation None

Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight

Warranty 6 Month (Limited Factory Warranty)

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 ATV pictures | Honda FourTrax Recon ES TRX250TE

2013 Honda FourTrax Recon ES TRX250TE

Handy Man - With Honda’s optional handlebar-mounted, push-button Electric Shift Program (ESP), quick, crisp gearshifts are just a thumb-tip away.

Semi-dry-sump Engine Design - Compact and lighter-weight, the Recon's semi-dry sump and overhead valve designs create an engine that's not only shorter from top to bottom, but one that enhances handling by lowering the center of gravity while increasing ground clearance as well.

2013 Honda FourTrax Recon ES TRX250TE Review

The best ATV value out there...

These days, you have to look hard at every dollar you spend. But there’s a difference between being just being cheap and smart with your money. And smart riders know that when it comes to value, Honda’s Recon is a great investment. Sure, it has an attractive price. But it also offers something nobody else can: Honda quality. And it still has plenty of features too: Its compact size and footprint let it tackle tight trails larger ATVs might find impassable. You get rugged, reliable 2WD performance second to none. And we even have two models to choose from: Our standard Recon comes with a conventional foot-shift ATV transmission, while the Recon ES features our Electric Shift Program (ESP) technology that lets you shift using two convenient handlebar-mounted buttons.

• 229cc air-cooled OHV longitudinally mounted single-cylinder four-stroke engine
• Smaller engine and a more compact footprint
• Honda's Electric Shift Program (ESP) technology

Since the inception of this classy mid-sized ATV, thousands upon thousands of riders have made the Honda FourTrax® Recon® a best seller, and that's just the way it should be. A remarkably torquey 229cc OHV engine pumps out delightful levels of performance, while its middleweight size enhances its agile handling traits. With the option of a manual gearbox or Honda's pushbutton Electric Shift Program (ESP®) the FourTrax Recon continues to deliver just-right performance that gets the job done seven days a week.

2013 Honda FourTrax Recon ES TRX250TE Key Features

Important Safety Information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Handy Man - With Honda’s optional handlebar-mounted, push-button Electric Shift Program (ESP), quick, crisp gearshifts are just a thumb-tip away.

Fire Power - Hitting the trail or the daily chores is a snap, thanks to the Recon’s convenient and reliable electric starter. There’s an auxiliary recoil starter as well, just in case.

Fuel-Efficient Muscle - The Recon’s overhead-valve design keeps its 229cc engine compact and lightweight, yet surprisingly powerful and very economical.

Accessories as tough as the ATVs they’re on - When you're riding the best ATV on the planet, only the best accessories will do—Honda Genuine Accessories. These accessories are designed specifically for your Honda vehicle and feature the same quality and durability you’ve come to expect from Honda.

Honda Genuine Accessories - Trailer Hitch Kit with Oil Temperature Light, Soft Rack Bag (front and rear), Fender Bag, Outdoor Cover (XL)

WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

2013 Honda FourTrax Recon ES TRX250TE Features and Benefits

Electric Shift Program (ESP) - Flicking between gears should always be this easy. With Honda's available unique ESP system (ES models only), up- and downshifting is as simple and fast as pushing one of two handlebar-mounted buttons. ESP is also a bonus when riding in heavy or mud/snow-covered boots.

Semi-dry-sump Engine Design - Compact and lighter-weight, the Recon's semi-dry sump and overhead valve designs create an engine that's not only shorter from top to bottom, but one that enhances handling by lowering the center of gravity while increasing ground clearance as well.

Shaft Final Drive

Uniquely Designed Floorboards - Both the Recon and Recon ES have uniquely designed floorboards, which allow the rider's feet to grip the footrests while keeping away mud and debris.

Steel Cargo Racks - Front and rear steel cargo racks allow payloads of 33 and 66 pounds, respectively.

LED Taillight and Brakelight - LED taillight and brakelight for durable, long-lasting lighting.

2013 Honda FourTrax Recon ES TRX250TE
North American Specifications
USA MSRP: $4,199 USD

ENGINE
Engine Type 229cc air-cooled OHV longitudinally mounted single-cylinder four-stroke
Bore And Stroke 68.5mm x 62.2mm
Induction 22mm carburetor
Ignition CD with electronic advance
Starter Electric with auxiliary recoil

DRIVE TRAIN
Clutch Automatic
Transmission ESP Five-speed with Reverse
Driveline Direct rear driveshaft

CHASSIS / SUSPENSION / BRAKES
Front Suspension Independent double-wishbone; 5.1 inches travel
Rear Suspension Swingarm with single shock; 4.9 inches travel
Front Brake Dual sealed hydraulic drum
Rear Brake Sealed mechanical drum
Front Tire 22 x 7-11
Rear Tire 22 x 10-9

DIMENSIONS
Length 75.0 inches
Width 40.7 inches
Height 42.1 inches
Wheelbase 44.5 inches
Seat Height 31.2 inches
Ground Clearance 6.0 inches
Turning Radius 8.5 feet
Curb Weight 439 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 2.4 gallons, including 0.6-gallon reserve

OTHER
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner?s manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) off-road emissions standards.
Available Colors Red, Olive
Model Id TRX250TE

FACTORY WARRANTY INFORMATION
One Year Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

Specifications, appearance, and price of product are subject to change without notice.

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 ATV pictures | Honda FourTrax Rancher TRX420TM |

2013 Honda FourTrax Rancher TRX420TM

What Kind of Rancher do You Need? - • Compact, 420cc OHV semi-dry-sump engine • 5-speed semi-automatic transmission available in manual or electric shift (ESP)

Available TraxLok Selectable 2WD/4WD - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. (4x4 Rancher models only.)

2013 Honda FourTrax Rancher TRX420TM Review

What Kind of Rancher do You Need?

• Compact, 420cc OHV semi-dry-sump engine
• 5-speed semi-automatic transmission available in manual or electric shift (ESP)

With six models in our Rancher lineup, we’re sure to have one that suits your needs perfectly. Every one offers Honda’s legendary dependability and quality. Then there’s the lineup itself: You get to choose between selectable 2WD/4WD (TraxLok), Programmed Fuel Injection, two-wheel-drive, four-wheel-drive, and two transmission choices (semi-automatic and electric shift), there’s no shortage of cutting-edge capability and features.

From our tough, no-frills 2WD Rancher through the Rancher 4x4 ES EPS you can be certain there’s a machine for you, and even more important, for whatever chore, hunt, expedition or trail you aim to tackle. Is it any wonder the Ranchers are America’s best-selling ATVs?

2013 Honda FourTrax Rancher TRX420TM Key Features

Important Safety Information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Shifting’s Never Been So Easy - With Honda’s optional handlebar-mounted, push-button Electric Shift Program (ESP), quick, crisp gearshifts are just a thumb-tip away.

Two-Wheel Drive? Four-Wheel Drive? You Decide. - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. Two-wheel drive gives you lighter steering, while four-wheel drive gives you improved traction. It’s the best of both worlds.

Absolute power. Absolute workhorse. - ATV owners work hard, so they need an engine that works hard, too. Like this 420cc fuel-injected taskmaster boasting power, torque and bulletproof Honda reliability.

Accessories as tough as the ATVs they’re on. - When you're riding the best ATV on the planet, only the best accessories will do—Honda Genuine Accessories. These accessories are designed specifically for your Honda vehicle and feature the same quality and durability you’ve come to expect from Honda.

2013 Honda FourTrax Rancher TRX420TM Features and Benefits

Available TraxLok Selectable 2WD/4WD - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. (4x4 Rancher models only.)

Fuel Injection - The Keihin fuel-injection system, featuring a 34m throttle body, delivers crisp, seamless performance while ensuring hassle-free operation in cold conditions and varying altitudes.

Semi-dry-sump Engine Design - Our semi-dry sump and overhead valve designs give you an engine that's shorter from top to bottom. The compact engine both lowers the center of gravity and increases ground clearance.

Longitudinal Engine Layout

Shaft Final Drive

Electric Shift Program (ESP) - Upshifting or downshifting is easy and fast—just push one of two handlebar-mounted buttons. ESP is a huge advantage when riding in heavy boots, or if your boots are covered in mud or snow.

Available Electric Power Steering (EPS)

2013 Honda FourTrax Rancher TRX420TM
North American Specifications
USA MSRP: $5,149 USD

ENGINE
Engine Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil

DRIVE TRAIN
Clutch Automatic
Transmission Five-speed with Reverse
Driveline Direct rear driveshaft

CHASSIS / SUSPENSION / BRAKES
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brake Sealed mechanical drum
Front Tire 24 x 8-12
Rear Tire 24 x 10-11

DIMENSIONS
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.4 inches
Ground Clearance 6.5 inches
Turning Radius 8.9 feet
Curb Weight 547 lbs (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 3.5 gallons (including 1.0 gallon reserve)

OTHER
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive
Model Id TRX420TM

FACTORY WARRANTY INFORMATION
Duration One year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.

Specifications, appearance, and price of product are subject to change without notice.

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 Honda FourTrax Rancher ES TRX420TE ATV pictures

2013 Honda FourTrax Rancher ES TRX420TE

What Kind of Rancher do You Need? - All Rancher features and adds: Electric Shift Program

With six models in our Rancher lineup, we’re sure to have one that suits your needs perfectly. Every one offers Honda’s legendary dependability and quality. Then there’s the lineup itself: You get to choose between selectable 2WD/4WD (TraxLok), Programmed Fuel Injection, two-wheel-drive, four-wheel-drive, and two transmission choices (semi-automatic and electric shift), there’s no shortage of cutting-edge capability and features.

2013 Honda FourTrax Rancher ES TRX420TE Review

From our tough, no-frills 2WD Rancher through the Rancher 4x4 ES EPS you can be certain there’s a machine for you, and even more important, for whatever chore, hunt, expedition or trail you aim to tackle. Is it any wonder the Ranchers are America’s best-selling ATVs?

2013 Honda FourTrax Rancher ES TRX420TE Key Features

Important Safety Information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

Shifting’s Never Been So Easy - With Honda’s optional handlebar-mounted, push-button Electric Shift Program (ESP), quick, crisp gearshifts are just a thumb-tip away.

Two-Wheel Drive? Four-Wheel Drive? You Decide. - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. Two-wheel drive gives you lighter steering, while four-wheel drive gives you improved traction. It’s the best of both worlds.

Absolute power. Absolute workhorse. - ATV owners work hard, so they need an engine that works hard, too. Like this 420cc fuel-injected taskmaster boasting power, torque and bulletproof Honda reliability.

Accessories as tough as the ATVs they’re on. - When you're riding the best ATV on the planet, only the best accessories will do—Honda Genuine Accessories. These accessories are designed specifically for your Honda vehicle and feature the same quality and durability you’ve come to expect from Honda.

2013 Honda FourTrax Rancher ES TRX420TE Features and Benefits

Available TraxLok Selectable 2WD/4WD - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain. (4x4 Rancher models only.)

Fuel Injection - The Keihin fuel-injection system, featuring a 34m throttle body, delivers crisp, seamless performance while ensuring hassle-free operation in cold conditions and varying altitudes.

Semi-dry-sump Engine Design - Our semi-dry sump and overhead valve designs give you an engine that's shorter from top to bottom. The compact engine both lowers the center of gravity and increases ground clearance.

Longitudinal Engine Layout

Shaft Final Drive

Electric Shift Program (ESP) - Upshifting or downshifting is easy and fast—just push one of two handlebar-mounted buttons. ESP is a huge advantage when riding in heavy boots, or if your boots are covered in mud or snow.

Available Electric Power Steering (EPS)

2013 Honda FourTrax Rancher ES TRX420TE
North American Specifications
USA MSRP: $5,399 USD

ENGINE
Engine Type 420cc liquid-cooled fuel-injected OHV wet-sump longitudinally mounted single-cylinder four-stroke
Bore And Stroke 86.5mm x 71.5mm
Induction Keihin® 34mm throttle-body fuel-injection system
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil

DRIVE TRAIN
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Swingarm with single shock; 6.3 inches travel
Front Brake Dual hydraulic disc
Rear Brake Sealed mechanical drum
Rear Tires 24 x 8-12
Rear Tires 24 x 10-11

DIMENSIONS
Length 80.9 inches
Width 46.1 inches
Height 45.1 inches
Wheelbase 49.2 inches
Seat Height 32.4 inches
Ground Clearance 6.5 inches
Curb Weight 549 pounds (Includes all standard equipment, required fluids and a full tank of fuel-ready to ride)
Fuel Capacity 3.5 gallons, including 1.0-gallon reserve
Turning Radius 8.9 feet

OTHER
Model Id TRX420TE
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner ?s manual thoroughly.

FACTORY WARRANTY INFORMATION
One Year Transferable limited warranty; extended coverage available with a Honda Protection Plan.

Specifications, appearance, and price of product are subject to change without notice.

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2013 Honda FourTrax Rancher AT EPS TRX420FPA

2013 Honda FourTrax Rancher AT with Electric Power Steering TRX420FPA

Rancher AT: It’s the Automatic Choice...All Rancher AT features plus adds: Electric Power Steering.

• Programmed Fuel Injection (PGM-FI) • Honda automatic five-speed Twin Clutch transmission • Independent Rear Suspension • TraxLock 2WD/4WD

2013 Honda FourTrax Rancher AT with Electric Power Steering TRX420FPA Review

Isn’t it great when something in life actually works out BETTER than promised? That’s how you’re going to feel when you choose a Honda Rancher AT. When you look at all it offers, it’s easy to see why the Rancher AT is such a hit. First it belongs to the best-selling ATV family in America. Because they’re Hondas, they offer a legendary degree of dependability and quality. Then there’s the lineup itself, with the Rancher AT standing proud as the flagship. Built around the same class-leading 420cc engine as our other Ranchers, the AT makes a great ATV even better with features like plush Independent Rear Suspension (IRS), Electric Power Steering (EPS), Programmed Fuel Injection (PGM-FI), TraxLok 2WD/4WD system, and a revolutionary, twin-clutch-equipped automatic five-speed transmission that’s arguably one of the slickest- and quickest-shifting gearboxes on dirt. It’s versatile, too, as the Rancher AT lets you choose between going fully automatic or shifting via the push-button Electric Shift Program (ESP).

• Programmed Fuel Injection (PGM-FI)
• Honda automatic five-speed Twin Clutch transmission
• Independent Rear Suspension
• TraxLock 2WD/4WD

The FourTrax® Rancher® 4x4 AT carries an impressive blend of innovation, sophistication and hard-working credentials that make it stand out as one of the best picks in the world of ATVs. Riders have the option of choosing between fully automatic transmission operation and an Electric Shift Program (ESP®) mode that allows for easy push-button shifts on command. Also in the mix are an independent rear suspension, selectable 4WD/2WD TraxLok® and a rugged torque-sensitive front differential, plus the option of Electric Power Steering (EPS)-all of which make the FourTrax Rancher 4x4 AT a genuine superstar in the world of off-road riding.

2013 Honda FourTrax Rancher AT with Electric Power Steering TRX420FPA Key Features

Honda Genuine Accessories - Frame Skid Plates (front and rear), Winch Kit, Front Brush Guard, A-Arm Guards (front and rear), Soft Rack Bag (front and rear), Fender Bag, Outdoor Cover (XL, XXL), 12V Front Accessory Socket, Recoil Starter Kit

WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

Important Safety Information - Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

The First of Its Kind. The Quickest, Too. - Exclusive to the Rancher AT, Honda’s revolutionary automatic five-speed transmission features a twin-clutch design that ensures slick, lightning-fast shifts and optimal power transfer.

Twice the Performance. Half the Effort. - Honda’s Electric Power Steering (EPS) features sophisticated torque sensors that measure how much force you’re applying and the ECU determines how much extra assist you need.

Independent Rear Suspension. - The Rancher AT’s independent rear suspension (IRS) features a double wishbone design that maintains rear wheel alignment for a smoother, more surefooted ride over all kinds of terrain.

Accessories as tough as the ATVs they’re on. - When you're riding the best ATV on the planet, only the best accessories will do—Honda Genuine Accessories. These accessories are designed specifically for your Honda vehicle and feature the same quality and durability you’ve come to expect from Honda.

2013 Honda FourTrax Rancher AT with Electric Power Steering TRX420FPA Features and Benefits

TraxLok Selectable 2WD/4WD - This invaluable feature allows a rider to shift, via a front-panel-mounted lever, between 2WD and 4WD for maximum versatility during tough chores or on uneven terrain.

Programmed Fuel Injection - Being able to count on crisp performance and starting under any conditions is a must for anyone who depends on their ATV. Thanks to Honda's Programmed Fuel-Injection (PGM-FI), featuring a 34mm throttle body, 12-hole Denso injector and Idle Air Control Valve (IACV), the Rancher AT not only ensures trouble-free operation in the cold and at varying altitudes, it enhances fuel economy as well.

Semi-dry-sump Engine Design - Our semi-dry sump and overhead valve designs give you an engine that's shorter from top to bottom. The compact engine both lowers the center of gravity and increases ground clearance.

Honda Automatic Five-Speed Transmission - The Rancher AT's Honda automatic five-speed transmission features two modes: You can shift into five forward gears, neutral and reverse, or the Rancher can shift into the forward gears automatically. Shifting is super-fast and super-efficient thanks to the radical twin-clutch design.

Longitudinal Engine Layout

Shaft Final Drive

Available Electric Power Steering (EPS)

Electric Shift Program (ESP) - Upshifting or downshifting is easy and fast—just push one of two handlebar-mounted buttons. ESP is a huge advantage when riding in heavy boots, or if your boots are covered in mud or snow.

North American Specifications
USA MSRP: $7,799 USD
Canadian MSRP: See dealer for pricing

ENGINE
Engine Type 420cc liquid-cooled OHV semi-drysump longitudinally mounted single-cylinder fourstroke
Bore And Stroke 86.5mm x 71.5mm
Induction Programmed Fuel Injection (PGM-FI), 34mm throttle bodies
Ignition Full-transistorized type with electronic advance
Starter Electric with optional auxiliary recoil

DRIVE TRAIN
Clutch Automatic
Transmission Automatic
Driveline Direct front and rear driveshafts

CHASSIS / SUSPENSION / BRAKES
Front Suspension Independent double-wishbone; 6.3 inches travel
Rear Suspension Independent double-wishbone; 6.3 inches travel
Front Brakes Dual hydraulic disc
Rear Brakes Single hydraulic disc
Front Tires 24 x 8-12
Rear Tires 24 x 10-11

DIMENSIONS
Length 80.9 inches
Width 46.1 inches
Height 45.8 inches
Wheelbase 49.4 inches
Seat Height 32.4 inches
Ground Clearance 9.1 inches
Turning Radius 10.5 feet
Curb Weight 642 pounds (Includes all standard equipment, required fluids and a full tank of fuel ready to ride)
Fuel Capacity 3.6 gallons, including 1.0-gallon reserve

OTHER
Note No operator under age 16. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.
Emissions Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Available Colors Red, Olive, Natural Gear™ Camo
Model Id TRX420FPA

FACTORY WARRANTY INFORMATION
Duration 1 year
Description Transferable limited warranty; extended coverage available with a Honda Protection Plan.

Specifications, appearance, and price of product are subject to change without notice.

Auto Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.
