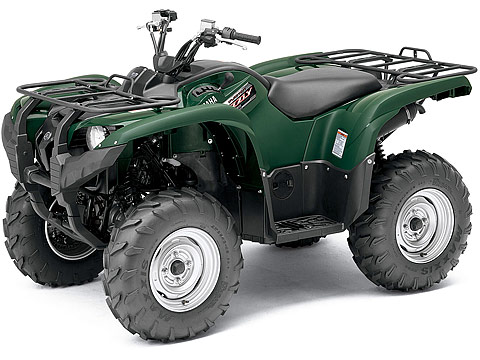

2012 YAMAHA Grizzly 550 FI Auto 4x4
2012 YAMAHA Grizzly 550 FI Auto 4x4
Click Thumbnail to download (size 1600 x 1200 pixels)
Best in class meets best in value...
The Grizzly 550 employs a 558cc powerplant along with IRS, On Command 4WD, fuel injection and much more.
If you are looking for the ultimate non-EPS fully sized ATV with fuel injection, Yamaha exclusive fully automatic Ultramatic transmission, on command 2WD / 4WD with Diff Lock and so much more, look no further.
2012 Yamaha Grizzly 550 FI Auto 4x4 Highlights:
Key selling points:
The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-in-class 558cc powerplant and excellent value.
Steel Blue model includes cast aluminum wheels.
Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode.
Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with a simple push of a button.
Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
The Grizzly 550 boasts the lightest weight in its class at only 648 pounds wet weight.
2012 Yamaha Grizzly 550 FI Auto 4x4 Key Features:
New for 2012:
o New oil access cover allows easy access to check oil level.
o Fenders have a textured finish that resist scratching and scuffing.
o Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
o Rugged Maxxis® tires get the Grizzly moving over the gnarliest terrain.
ENGINE:
o This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
o Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
o Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
o Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
o Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
o Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
o Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
o High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
o Five-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic transmission control.
o Sealed drive case keeps out water and debris to help increase durability.
Chassis/Suspension:
o Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
o Front and rear lower A-arm guards offer excellent protection -and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that's 5 inches wider than that provided by ordinary designs.
o Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
o CV boots are made of tough polyethylene for more durability than typical rubber boots.
o Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
o 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there's a 4.8-liter water-resistant storage compartment under there, too.
o 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
o 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling and excellent comfort.
o Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.
Additional features:
o Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
o Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
o Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
o Dual 35-watt multireflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.
o Assembled in Newnan, GA, U.S.A.
AVAILABLE ACCESSORIES:
Please refer to the 2011 Spring Big Book
* Wet weight includes the vehicle with all standard equipment and all
fluids, including oil, coolant (as applicable) and a full tank of fuel.
It does not include the weight of options or accessories. Wet weight
is useful in making real-world comparisons with other models.
ATVs with engine sizes over 90cc are recommended for use only by riders age
16 years and older.
USA Specifications
US MSRP* $7,999 (Hunter Green) Available from June, 2011
$8,249 (Steel Blue) Available from June, 2011
$8,449 (Realtree® AP™ Camouflage) Available from July, 2011
ENGINE
Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 92.0 x 84.0mm
Compression Ratio 9.3:1
Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
Ignition TCI, 32-bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
CHASSIS
Suspension / Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT25 x 8-12
Tires / Rear AT25 x 10-12
DIMENSIONS
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 11.8 in
Fuel Capacity 5.3 gal
Wet Weight 648 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb
OTHER
Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
The Grizzly 550 employs a 558cc powerplant along with IRS, On Command 4WD, fuel injection and much more.
If you are looking for the ultimate non-EPS fully sized ATV with fuel injection, Yamaha exclusive fully automatic Ultramatic transmission, on command 2WD / 4WD with Diff Lock and so much more, look no further.
2012 Yamaha Grizzly 550 FI Auto 4x4 Highlights:
Key selling points:
The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-in-class 558cc powerplant and excellent value.
Steel Blue model includes cast aluminum wheels.
Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from sea level to 15,000 feet.
Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking in 4WD mode.
Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with a simple push of a button.
Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
The Grizzly 550 boasts the lightest weight in its class at only 648 pounds wet weight.
2012 Yamaha Grizzly 550 FI Auto 4x4 Key Features:
New for 2012:
o New oil access cover allows easy access to check oil level.
o Fenders have a textured finish that resist scratching and scuffing.
o Gas charged rear shocks offer a quality damping feel and excellent performance over a long period of time.
o Rugged Maxxis® tires get the Grizzly moving over the gnarliest terrain.
ENGINE:
o This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
o Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
o Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
o Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
o Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
o Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
o Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
o High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
o Five-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic transmission control.
o Sealed drive case keeps out water and debris to help increase durability.
Chassis/Suspension:
o Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
o Front and rear lower A-arm guards offer excellent protection -and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that's 5 inches wider than that provided by ordinary designs.
o Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
o CV boots are made of tough polyethylene for more durability than typical rubber boots.
o Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
o 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there's a 4.8-liter water-resistant storage compartment under there, too.
o 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
o 25x8-12 front and 25x10-12 rear Maxxis® tires provide responsive steering and handling and excellent comfort.
o Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.
Additional features:
o Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
o Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
o Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
o Dual 35-watt multireflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.
o Assembled in Newnan, GA, U.S.A.
AVAILABLE ACCESSORIES:
Please refer to the 2011 Spring Big Book
* Wet weight includes the vehicle with all standard equipment and all
fluids, including oil, coolant (as applicable) and a full tank of fuel.
It does not include the weight of options or accessories. Wet weight
is useful in making real-world comparisons with other models.
ATVs with engine sizes over 90cc are recommended for use only by riders age
16 years and older.
USA Specifications
US MSRP* $7,999 (Hunter Green) Available from June, 2011
$8,249 (Steel Blue) Available from June, 2011
$8,449 (Realtree® AP™ Camouflage) Available from July, 2011
ENGINE
Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
Bore x Stroke 92.0 x 84.0mm
Compression Ratio 9.3:1
Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
Ignition TCI, 32-bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
CHASSIS
Suspension / Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
Suspension / Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Dual hydraulic disc
Tires / Front AT25 x 8-12
Tires / Rear AT25 x 10-12
DIMENSIONS
L x W x H 81.3 x 46.5 x 48.8 in
Seat Height 35.6 in
Wheelbase 49.2 in
Turning Radius 126 in
Ground Clearance 11.8 in
Fuel Capacity 5.3 gal
Wet Weight 648 lb
Rack Capacity 99 lb Fr./187 lb Rr.
Towing Capacity 1322 lb
OTHER
Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)
