2011 Yamaha Grizzly 550 FI 4x4 EPS ATV Insurance Information

2011 Yamaha Grizzly 550 FI 4x4 EPS

YAMAHA ATV pictures,
specifications, accident lawyers and insurance information.

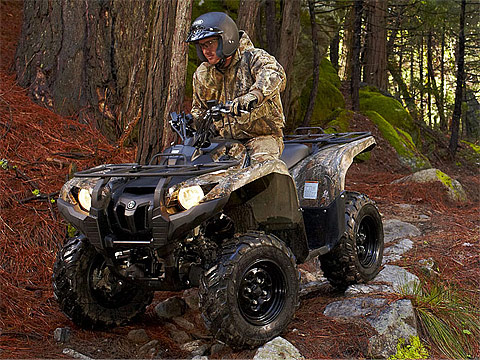

2011 Yamaha Grizzly 550 FI 4x4 EPS

Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Yamaha Grizzly 550 FI 4x4 EPS

The 550cc class leader with EPS, fuel injection, On Command 4WD, and IRS for excellent terrainability.

Featuring a 558cc fuel-injected 4-stroke engine, Yamaha's EPS, Ultramatic Transmission, On-Command 4WD, 4-disk brakes and Yamaha's unbeatable reliability and durability.

Right behind our Grizzly 700 FI EPS, you'll find our Grizzly 550 FI EPS.

Featuring a powerful fuel injected 558cc 4-stroke engine, Electronic Power Steering, On-Command 4-wheel drive, 4-wheel disc brakes, and Yamaha's fully automatic Ultramatic transmission. These key features combined with Yamaha's proven durability and reliability, continue to make the Grizzly one of the best selling ATVs available today.

Highlights
- Excellent Power-to-Weight Ratio
- Electric Power Steering
- Electronic Fuel Injection

Key Features:
" The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-inclass 558cc powerplant, Electric Power Steering and excellent value.
" Steel Blue model includes cast aluminum wheels.
" Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from below sea level to 15,000 feet.
" Electric Power Steering system lightens steering for superior comfort and terrainability.
" Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
" Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with a simple push of a button.
" Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
" Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
" The Grizzly 550 EPS boasts the lightest weight in its class at only 648 pounds wet weight.

Engine:
" This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
" Compact engine design features a 35-degree cylinder angle for ground clearance and lower seat height for quick steering and maneuverability.
" Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
" Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
" Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
" Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
" Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
" Straight driveshaft layout eliminates U-joints for reduced friction, noise, vibration, and maintenance.
" Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
" High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
" 5-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic® transmission control.
" Override button allows engine to make maximum rpm in full Diff. Lock mode.
" Electronic servo-activated 2WD/4WD/Diff. Lock via the On-Command® system.
" Sealed drive case keeps out water and debris to help increase durability.

Chassis/Suspension:
" Electric Power Steering. This assist feature, pioneered by Yamaha on the Grizzly 700 FI EPS, lightens steering for superior comfort and terrainability.
" 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there's a 4.8-liter waterproof storage compartment under there, too.
" 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
" 25x8-12 front and 25x10-12 rear Dunlop® tires provide responsive steering and handling and excellent comfort.
" Rugged injection-molded front bumper and CV joint guards protect against rock and debris damage.
" Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
" Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
" Front and rear lower A-arm guards offer excellent protection -and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that's 5 inches wider than that provided by ordinary designs.
" Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
" Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.

Additional Features:
" Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
" Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
" Large, specially designed seat is extra plush and widely contoured for all-day rider comfort.
" Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
" Dual 35-watt multi-reflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.

USA Specifications
MSRP* $9,149 (Realtree AP Camo) Available from June 2010
$8,949 (Steel Blue) Available from July 2010
$8,699 (Hunter Green) Available from July 2010

Engine
- Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
- Bore x Stroke 92.0 x 84.0mm
- Compression Ratio 9.3:1
- Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
- Ignition TCI, 32-bit ECU
- Starting System Electric
- Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
- Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis
- Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
- Suspension/Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
- Brakes/Front Dual hydraulic disc
- Brakes/Rear Dual hydraulic disc
- Tires/Front AT25 x 8-12; aluminum wheels
- Tires/Rear AT25 x 10-12; aluminum wheels

Dimensions
- L x W x H 81.3 x 46.5 x 48.8 in
- Seat Height 35.6 in
- Wheelbase 49.2 in
- Turning Radius 126 in
- Ground Clearance 11.8 in
- Fuel Capacity 5.3 gal
- Wet Weight 648 lb
- Rack Capacity 99 lb Fr./187 lb Rr.
- Towing Capacity 1322 lb

Other
- Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
- Lighting Dual 35W Halogen multi-reflector headlights & 21W/5W brakelight
- Warranty 6 Month (Limited Factory Warranty)

Canadian Specifications
Canadian MSRP* $11,249 CDN

Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 558 cc
Bore and Stroke 92mm x 84 mm
Compression Ratio 9.3 : 1
Carburetion Mikuni Electronic Fuel Injection w/40mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI with 32 bit ECU
Starting electric w/auto-decompression
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive

Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) hydraulic discs
Brakes (Rear) hydraulic discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12

Length 2065 mm (81.3")
Width 1180 mm (46.5")
Height 1240 mm (48.8")
Wheelbase 1250 mm (49.2")
Ground Clearance 300 mm (11.8")
Seat Height 905 mm (35.6")
Dry Weight 272 kg (600 lb)
Wet Weight 294 kg (648 lb) - ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Dark Green
Realtree® AP HD™ Camouflage

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2012 Yamaha Grizzly 450 Auto 4x4 EPS ATV pictures

2012 Yamaha Grizzly 450 Auto 4x4 EPS

YAMAHA ATV pictures,
USA specifications, accident lawyers and insurance information.

2012 Yamaha Grizzly 450 Auto 4x4 EPS

Click Thumbnail to download (size 1600 x 1200 pixels)

2012 Yamaha Grizzly 450 Auto 4x4 EPS Review

The world middleweight champ...

A mid-class, full-featured chart-topper, this Grizzly 450 also gets EPS and a rear sealed wet brake.

Featuring nearly everything our top of the line 2012 Grizzly 700 EPS has but in a more nimble package, the 2012 Yamaha Grizzly 450 truly is the ultimate middleweight ATV.

2012 Yamaha Grizzly 450 Auto 4x4 EPS Highlights:

Key selling points:

1. Grizzly 450 Automatic 4x4 EPS has many of the same great features as big brothers Grizzly 700 and 550, including electric power steering, four-wheel independent suspension, and powered by a fuel-efficient, liquid-cooled engine.

2. Steel Blue model includes cast aluminum wheels.

3. Electric Power Steering system lightens steering for superior comfort and terrainability.

4. Almost 10 pounds lighter than previous Grizzly 450 models, even with the addition of Electric Power Steering, providing awesome power-to-weight ratio.

5. Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATVs. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and uses a sprag clutch for all-wheel downhill engine braking
in 4WD mode.

6. Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and a fully locked differential 4WD-all with the simple push of a button. Override button allows engine to make maximum rpm in full Diff. Lock mode.

7. Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear.

8. Ground clearance of 10.8 and a high-impact plastic skidplate provide terrainability and undercarriage protection.

9.  Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position and clock.

10. Rear wet brake is a multi-disc system running in hydraulic fluid inside a sealed unit. This keeps out the elements (such as mud and water) while providing powerful, consistent stopping power and greatly reduced maintenance.

2012 Yamaha Grizzly 450 Auto 4x4 EPS Key Features:

Engine:
o 421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.
o Electric Power Steering system lightens steering for superior comfort and less rider fatigue.
o Semi-oval slide 33mm BSR Mikuni® carburetor and high-output DC-CDI ignition deliver fantastic throttle response and engine performance at all rpm.
o Pushbutton electric starting.
o Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.
o Left-side-mounted (Hi/Lo/N/R/P) shift lever is easily accessible.
o Large-capacity aluminum radiator provides maximum cooling efficiency and is positioned high in frame for optimal protection.
o Compact engine design features a 45-degree cylinder angle for maximum ground clearance and lower seat height for quick, responsive steering and agility.
o Gear-driven crankshaft balancer and rubber-damper engine mounts reduce vibration.
o Specially designed drive system air intake vent helps prevent overheating and keeps water and mud from entering drive case.
o Tool-free air filter box for easy access and quick maintenance.

Chassis/Suspension:
o Lightweight chassis features outstanding durability with superior rigidity for class-leading agility and handling.
o Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability-even in 4WD.
o Fully independent four-wheel suspension features a doublewishbone suspension front and rear delivering 6.3 inches and
7.1 inches of travel.
o Using a newly-designed multi-disc system running in gear oil, the sealed rear wet brake combines strong, consistent stopping power and greatly reduced maintenance requirements.
o Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.
o Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
o Heavy-duty composite front carry bar and CV joint guards help prevent damage to boot covers and won't dent or rust.

Additional Features:
o Grizzly 700-inspired front-end styling boasts convenient water-resistant storage compartment on the front fender.
o The water-resistant DC outlet is located to the side of the multifunction instrument panel for convenient access;automotive style receptacle handles a wide range of accessories.
o Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
o Available in Realtree® AP™ camouflage with a water-dipped process for durability.
o Large-capacity, 4-gallon fuel tank has a built-in gauge and easyto-reach petcock valve.
o Water-resistant, large-capacity underseat storage box provides added convenience.
o Wide, fully integrated floorboards keep rider's feet dry and feature serrated footpegs for extra grip in wet conditions.
o Large front and rear fenders with inner guards offer excellent mud/splash protection.
o Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.
o Dual, bright multireflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.
o Assembled in Newnan, GA, U.S.A.

Available Accessories:
Please refer to the 2011 Spring Big Book

* Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models. ATVs with engine sizes over 90cc are recommended for use only by riders age 16 years and older.

USA Specifications
US MSRP* $7,499 (Hunter Green) Available from July, 2011
$7,799 (Steel Blue) Available from July, 2011
$7,849 (Realtree® AP™ Camouflage) Available from July, 2011

ENGINE
Type 421cc, 4-stroke, liquid-cooled single; SOHC
Bore x Stroke 84.5 x 75.0mm
Compression Ratio 10.0:1
Fuel Delivery Mikuni® 33mm BSR
Ignition DC-CDI
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

CHASSIS
Suspension / Front Independent double wishbone; 6.3-in travel
Suspension / Rear Independent double wishbone; 7.1-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Sealed oil bathed, multi disc
Tires / Front AT25 x 8-12
Tires / Rear AT25 x 10-12

DIMENSIONS
L x W x H 78.5 x 43.0 x 44.1 in
Seat Height 33.1 in
Wheelbase 48.5 in
Turning Radius 118 in
Ground Clearance 10.8 in
Fuel Capacity 4.0 gal
Wet Weight 620 lb
Rack Capacity 88 lb Fr./176 lb Rr.
Towing Capacity 1322 lb

OTHER
Instrumentation Digital LCD multifunction display: speedometer, odometer, dual tripmeter, hour meter, clock, gear position and fuel gauge
Lighting Dual 30W Krypton multireflector headlights & 21W/5W brakelight
Warranty 6 Month (Limited Factory Warranty)

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2011 Yamaha Grizzly 550 FI 4x4 ATV pictures

2011 Yamaha Grizzly 550 FI 4x4

YAMAHA ATV pictures,
specifications, accident lawyers and insurance information.

2011 Yamaha Grizzly 550 FI 4x4

Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Yamaha Grizzly 550 FI 4x4

This 550cc class machine boasts a 558cc powerplant and all the features of its “bigger” Grizzly brethren.

Featuring a 558cc fuel-injected 4-stroke engine, Yamaha's Ultramatic Transmission, On-Command 4WD, 4-disk brakes and Yamaha's unbeatable reliability and durability.

Our Grizzly 550 FI comes standard with a powerful fuel injected engine for easy cold starting, superior ground clearance to get you over any terrain, and 4-wheel disc brakes combined with full-time engine braking means slowing down requires less effort.

Throw in Yamaha's exclusive Ultramatic® transmission and On-Command drive selection and you've got an ultimate all terrain vehicle.

Highlights
- Excellent Power-to-Weight Ratio
- On-Command 4WD
- Electronic Fuel Injection

Key Features:
" The 550cc class has a leader, with a fully featured package based on its best-selling bigger brother, the Grizzly 700 FI, with a largest-in-class 558cc powerplant and excellent value.
" Steel Blue model includes cast aluminum wheels.
" Yamaha Fuel Injection means instantaneous cold starts and optimal performance in nearly any condition, from below sea level to 15,000 feet.
" Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and sprag clutch for all-wheel downhill engine braking in 4WD mode.
" Three-position On-Command® In/Out 4WD feature lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD-all with a simple push of a button.
" Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear with five-way preload-adjustable shocks for maximum control and comfort over rough terrain. Smoothest-running and -riding Grizzly ever.
" Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
" The Grizzly 550 boasts the lightest weight in its class at only 648 pounds wet weight.

Engine:
" This 558cc 4-stroke SOHC 4-valve liquid-cooled engine is derived directly from the industry-leading Grizzly 700 powerplant.
" Ceramic-composite cylinder liner provides outstanding durability and heat dissipation; 92mm forged piston is light and strong and rides on a carburized chrome-moly connecting rod.
" Two-lobe overhead cam and a pair of needle-roller rocker arms reduce friction by 50 percent for increased fuel efficiency and torque.
" The cylinder head has been optimized to deliver excellent throttle response and low-end power, roller-bearing rocker arms to reduce friction for fuel efficiency and torque.
" Gear-driven crankshaft balancer shaft and 4-position rubber engine mounts reduce vibration.
" Yamaha Fuel Injection uses a Mikuni® 40mm throttle body and idle speed control valve to provide easy cold starts and flawless fuel delivery in nearly any condition, from below sea level to 15,000 feet.
" Pushbutton electric start with seven-disc torque-limiting damper assembly to protect the starter motor.
" Stainless steel exhaust system features aluminum heat shields and a screen-type spark arrestor for great power with minimum noise output.
" High-capacity aluminum radiator with fan motor delivers maximum cooling efficiency and is positioned high in the frame for optimal protection.
" Five-position shift lever with L, H, N, R and P gates has a light shifting feel with easy engagement, providing positive Ultramatic® transmission control.
" Override button allows engine to make maximum rpm in full Diff. Lock mode.
" Electronic servo-activated 2WD/4WD/Diff. Lock via the On-Command® system.
" Sealed drive case keeps out water and debris to help increase durability.

Chassis/Suspension:
" Full-size chassis provides the same high level of comfort enjoyed by Grizzly 700 riders.
" Front and rear lower A-arm guards offer excellent protection -and Grizzly 550 features WideArc™ front A-arms for outstanding ground clearance that's 5 inches wider than that provided by ordinary designs.
" Five-way preload-adjustable shocks provide a comfortable ride, whatever the load or trail conditions.
" CV boots are made of tough polyethylene for more durability than typical rubber boots.
" Four-wheel hydraulic disc brakes serve up consistent, long-lasting braking power.
" 5.3-gallon fuel tank is located under the seat for excellent mass centralization and handling; there's a 4.8-liter waterproof storage compartment under there, too.
" 11.8 inches of ground clearance and full-length composite skidplate deliver maximum underbelly protection while enhancing terrainability.
" 25x8-12 front and 25x10-12 rear Dunlop® tires provide responsive steering and handling and excellent comfort.
" Direct driveshaft design efficiently transfers power while providing outstanding durability with less vibration.

Additional Features:
" Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter that counts the engine's running hours, 4WD status, transmission position, clock and fuel gauge.
" Rugged steel cargo racks with special, extra-durable wrinkle paint finish can pack a total of 286 pounds combined (99 front, 187 rear).
" Center-mounted, heavy-duty trailer hitch comes standard and can tow more than 1300 pounds.
" Dual 35-watt multireflector halogen bulb headlights with high/ low beams provide bright illumination for nighttime work or play.

USA Specifications
MSRP* $8,449 (Realtree AP Camo) Available from June 2010
$8,249 (Steel Blue) Available from July 2010
$7,999 (Hunter Green) Available from July 2010

Engine
- Type 558cc, 4-stroke, liquid-cooled single; SOHC, 4 valves
- Bore x Stroke 92.0 x 84.0mm
- Compression Ratio 9.3:1
- Fuel Delivery Yamaha Fuel Injection (YFI), 40mm
- Ignition TCI, 32-bit ECU
- Starting System Electric
- Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R, P
- Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive

Chassis
- Suspension/Front Independent double wishbone; 5-way preload adjustment, 7.1-in travel
- Suspension/Rear Independent double wishbone; 5-way preload adjustment, 9.5-in travel
- Brakes/Front Dual hydraulic disc
- Brakes/Rear Dual hydraulic disc
- Tires/Front AT25 x 8-12
- Tires/Rear AT25 x 10-12

Dimensions
- L x W x H 81.3 x 46.5 x 48.8 in
- Seat Height 35.6 in
- Wheelbase 49.2 in
- Turning Radius 126 in
- Ground Clearance 11.8 in
- Fuel Capacity 5.3 gal
- Wet Weight 648 lb
- Rack Capacity 99 lb Fr./187 lb Rr.
- Towing Capacity 1322 lb

Other
- Instrumentation Digital LCD multifunction display; speedometer, odometer, dual tripmeter, hour meter, clock, fuel gauge and gear position
- Lighting Dual 35W Halogen multireflector headlights & 21W/5W brakelight
- Warranty 6 Month (Limited Factory Warranty)

Canadian Specifications
Canadian MSRP* $10,499 CDN

Engine 4-stroke, SOHC, liquid cooled, 4-valve, single
Displacement 558 cc
Bore and Stroke 92mm x 84 mm
Compression Ratio 9.3 : 1
Carburetion Mikuni Electronic Fuel Injection w/40mm Big Bore throttle bodies and TPS
Ignition computerized DC-CDI with 32 bit ECU
Starting electric w/auto-decompression
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive

Suspension (Front) independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Suspension (Rear) independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Brakes (Front) hydraulic discs
Brakes (Rear) hydraulic discs
Tires (Front) Dunlop KT421 tubeless, AT25 x 8-12
Tires (Rear) Dunlop KT425 tubeless, AT25 x 10-12

Length 2065 mm (81.3")
Width 1180 mm (46.5")
Height 1240 mm (48.8")
Wheelbase 1250 mm (49.2")
Ground Clearance 300 mm (11.8")
Seat Height 905 mm (35.6")
Dry Weight 272 kg (600 lb)
Wet Weight 294 kg (648 lb) - ready to ride full of fuel and oil
Fuel Capacity 20 litres (5.3 U.S. gal)
Towing Capacity 600 kg (1,322 lb)
Colour(s) Dark Green

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2012 Yamaha Kodiak 450 Auto 4x4 EPS ATV pictures

2012 Yamaha Kodiak 450 Auto 4x4 EPS

YAMAHA ATV pictures,
Canadian Specifications, accident lawyers and insurance information.

2012 Yamaha Kodiak 450 Auto 4x4 EPS

Click Thumbnail to download (size 1600 x 1200 pixels)

2012 Yamaha Kodiak 450 Auto 4x4 EPS Review

Big attitude small package...

The 2012 Yamaha Kodiak 450 with EPS combines Yamaha durability with reliablity with key features such as Ultramatic transmission and on-command 2WD/4WD with Diff Lock to excel in both trail riding and utility situations.

Rounding out our EPS trilogy is the Kodiak 450. We added Electric Power Steering to its extensive list of features.

From a high-tech sealed wet brake out back, to four-wheel independent suspension, 10.8 inches of ground clearance, On-Command push button drive with Diff Lock and Yamaha's exclusive Ultramatic transmission. The Kodiak 450 may be midsized, but it's ready to take on the big players.

2012 Yamaha Kodiak 450 Auto 4x4 EPS Highlights:

- Electric Power Steering (EPS)
- Push button 4WD w/diff lock
- 5-way spring pre-load adjustment

2012 Yamaha Kodiak 450 Auto 4x4 EPS Key Features:

421cc liquid-cooled, SOHC four-stroke single is rugged and powerful.

Almost 10 pounds lighter than our previous non-EPS Kodiak 450 models, even with the addition of Electric Power Steering, providing awesome power-to-weight ratio.

EPS dramatically reduces steering effort, especially in 4WD. It helps isolate the rider from external forces acting on the front wheels, which means you can worry less about the terrain and focus more on enjoying the ride. This speed and torque sensitive EPS system could be the single most important improvement to your off road experience in decades!

Reduces steering effort in all situations, helping to reduce rider fatigue while enhancing rider confidence and ease of operation

Variable assist is speed and torque sensitive

Improves stability on virtually all types of terrain at a wide range of speeds

Helps isolate the rider from external feedback from obstacles that come in contact with the front wheels

Push-button servo-controlled On-Command system enables you to switch between 2WD, limited-slip 4WD and fully locked differential 4WD - all with the simple push of a dash mounted button. Real 4WD when you need it. With Diff-lock engaged, you have traction to all 4 wheels, immediately. You decide when you need 4WD, the machine doesn't decide for you.

The fully automatic Ultramatic™ transmission is not only versatile and easy to use, it is also known to be one of the most reliable. This transmission is designed to maintain constant belt tension, meaning it does not have to slip for the ATV to come to a stop. This dramatically improves belt reliability and durability. It also provides continuous and predictable off-throttle engine braking, which can really help when negotiating difficult terrain. The Kodiak 450 also comes with an automotive style transmission lever with a parking lock mechanism, so you don't have to worry about setting a separate parking brake every time you get off the ATV.

The high-capacity cooling system with high-mounted fan-cooled radiator delivers consistent engine performance, excellent durability and protection from sticks and rocks.

Independent rear suspension with sway bar for limited chassis roll provides great terrainability.

Differential-lock speed override switch (forward only) allows the rider to override the speed limiter for certain conditions.

Convenient pushbutton electric start from any gear.

The one-piece steel tube frame and rear sway bar improve handling and cornering.

Rear wet brake is a multi-disc system running in hydraulic fluid inside a sealed unit. This keeps out the elements (such as mud and water) while providing powerful, consistent stopping power and greatly reduced maintenance.

Ground clearance of 10.8 inches and a high-impact plastic skidplate provide terrainability and undercarriage protection.

Trick digital instrument panel boasts a multifunction LCD display with speedometer, odometer, dual tripmeter, hour meter, 4WD status, transmission position and clock.

12-volt D.C. terminal provides a convenient power source for accessories such as cellular phones, handheld lights or GPS.

Fully independent long-travel four-wheel suspension features double-wishbone suspension front and rear.

Stainless steel muffler and header design provides superior power characteristics, exhaust sound and durability.

Tool-free air filter box for easy access and quick maintenance.

Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability—even in 4WD.

Large-diameter ventilated hydraulic front disc brakes deliver tremendous stopping power in a variety of conditions.

Steel cargo racks with special, extra-durable wrinkle paint finish.

Water-resistant, large-capacity underseat storage box provides added convenience.

Wide, fully integrated floorboards keep rider's feet dry and feature serrated footpegs for extra grip in wet conditions.

Large front and rear fenders with inner guards offer excellent mud/splash protection.

Easy-access, underseat marine-spec electrical components ensure maximum protection from the elements.

Dual, bright multi-reflector 30-watt Krypton bulb headlights with high and low beams; rear brake light.

Model Not Available in the USA

Canadian Specifications
Canadian MSRP* $8,399 CDN

Engine
Engine 4-stroke, liquid-cooled, single
Displacement 421cc
Bore and Stroke 84.5 x 75mm
Compression Ratio 10:1
Carburetion Mikuni BSR33
Ignition DC-CDI
Starting electric
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive


Chassis
Suspension (Front) Independent Double Wishbone, w/ 5-way Preload Adjustment.
Suspension (Rear) Independent Double Wishbone, w/ 5-way Preload Adjustment.
Brakes (Front) dual 180mm, hydraulic discs
Brakes (Rear) Fully Sealed , Oil Bath, Multi Disc
Tires (Front) AT25x8-12
Tires (Rear) AT25x10-12


Dimensions
Length 1,991mm (78.4'')
Width 1,093mm (43.0'')
Height 1,120mm (44.1'')
Wheelbase 1,233mm (48.5'')
Ground Clearance 275mm (10.8'')
Seat Height 850mm (33.5'')
Wet Weight 286 kg (631 lb) - ready to ride full of fuel and oil
Fuel Capacity 15 litres
Towing Capacity 500 kg (1,100 lb)
Colour(s) Dark Blue
Dark Green
Realtree® AP HD™ Camouflage

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2011 Yamaha Grizzly 125 Motorcycle Insurance Information

2011 Yamaha Grizzly 125

YAMAHA ATV pictures,
specifications, accident lawyers and insurance information.

2011 Yamaha Grizzly 125

Click Thumbnail to download (size 1600 x 1200 pixels)

2011 Yamaha Grizzly 125

Big Grizzly styling, tough engineering and automatic transmission make for an ideal entry-level machine.

The 2011 Yamaha Grizzly 125 is the most user-friendly of all ATVs. For features and styling, it takes its lead from the Yamaha Grizzly 660, but offers the convenience of automatic transmission and the fuel efficiency of 2WD.

The family resemblance in the Grizzly clan is more than skin deep.

You'll find the same superior engineering standards and materials in Grizzly 125 : Nearly bulletproof, torquey four-stroke engines, chain drive, maximum durability and go-anywhere terrainability are what they're all about. Grizzly 125, for riders 16 and older, makes the connection with a fully automatic transmission with reverse, front and rear racks and sealed-drum brakes.

Highlights

- Light, small easy to ride
- Fully automatic

Key Features:

" Grizzly styling provides industry-leading good looks and durability, and a big Grizzly-style seat provides maximum rider comfort.
" Fully automatic V-belt transmission with forward, neutral and reverse is simple to operate and eliminates the need for shifting.
" Tough, powerful 124cc SOHC, four-stroke single cranks out plenty of smooth broadband propulsion.
" Rugged midsize steel frame fits a wide range of riders.
" Rugged steel cargo racks can pack a total of 33 pounds of combined cargo-11 pounds up front and 22 on the rear.
" Simple-to-use handlebar-mounted parking brake and choke lever for added convenience.
" Wide front and rear fenders with integrated full floorboards provide mud and splash protection for a dry, comfortable ride.

Engine:
" Powerful 124cc air-cooled four-stroke single delivers reliable, smooth engine performance for all riders.
" Simple-to-operate selector knob lets you effortlessly select forward, neutral or reverse.
" Adjustable throttle limiter lets adult supervisor add power gradually as beginning riders 16 years and older gain experience.
" Reliable, pushbutton electric start in any gear adds extra convenience and dependability.
" Rugged muffler with USFS-approved spark arrestor provides quiet operation.
" Automatic cam chain tensioner reduces engine maintenance and extends engine life.

Chassis/Suspension:
" Independent A-arm front suspension with 2.8 inches of travel delivers a smooth, plush ride and responsive steering.
" Rugged swingarm packing a single rear shock with 3.2 inches of travel smoothes out the bumps for a comfortable ride.
" Class-leading low 27-inch seat height enhances rider comfort and allows for great handling.
" 5.7-inch ground clearance allows smooth riding in a wide variety of terrain.
" Fully sealed front and rear drum brakes provide strong, reliable stopping power.
" Rugged 20x7-8 front and 22x10-8 rear knobby tires offer excellent traction and boost ground clearance.

Additional Features:
" Dual 30-watt multireflector Krypton headlights, set back in the front cowl, add the perfect menacing appearance.
" Taillight has an incorporated brake light.
" Large 2-gallon fuel tank provides excellent range.

USA Specifications
MSRP* $3,599 (Hunter Green) Available from June 2010
$3,599 (Steel Blue) Available from June 2010

Engine
- Type 124cc, 4-stroke, air-cooled single; SOHC
- Bore x Stroke 49.0mm x 66.0mm
- Compression Ratio 9.0:1
- Fuel Delivery Mikuni® 18mm
- Ignition DC - CDI
- Starting System Electric
- Transmission V-belt automatic/F, N, R
- Drive Train 2WD; O-ring chain

Chassis
- Suspension/Front Independent wishbone, 2.8-in travel
- Suspension/Rear Swingarm, 3.2-in travel
- Brakes/Front Dual sealed drum
- Brakes/Rear Sealed drum
- Tires/Front AT20x7-8
- Tires/Rear AT22x10-8

Dimensions
- L x W x H 66.9 x 39.0 x 38.6 in
- Seat Height 27.0 in
- Wheelbase 42.5 in
- Turning Radius 114 in
- Ground Clearance 5.7 in
- Fuel Capacity 2.0 gal
- Wet Weight 335 lb
- Rack Capacity 11 lb Fr./ 22 lb Rr.

Other
- Instrumentation N/A
- Lighting Dual 30W Krypton multireflector headlights; 21W/5W brakelight
- Warranty 6 Month (Limited Factory Warranty)

Canadian Specifications
Canadian MSRP* $4,699 CDN

Engine 4-stroke, SOHC, air-cooled, single
Displacement 124cc
Bore and Stroke 49 x 66mm
Compression Ratio 9:1
Carburetion Mikuni VM18SH
Ignition CDI
Starting electric
Lubrication wet sump
Oil Capacity 1.5 litres
Transmission V-belt, automatic with reverse
Final Drive O" ring chain

Suspension (Front) Independent wishbone, 2.8-in travel
Suspension (Rear) Swing-arm, 3.2-in travel
Brakes (Front) Dual sealed drum
Brakes (Rear) Sealed drum
Tires (Front) 20 x 7-8
Tires (Rear) 22 x 10-8

Length 1,700mm (66.9'')
Width 990mm (39.0'')
Height 980mm (38.6'')
Wheelbase 1,080mm (42.5'')
Ground Clearance 145mm (5.7'')
Seat Height 685mm (27.0'')
Dry Weight 139kg (306 lb)
Wet Weight 152 kg (335 lb) - ready to ride full of fuel and oil
Fuel Capacity 7.6 litres
Colour(s) Dark Green

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less.

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe Review

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe

YAMAHA ATV pictures,
specifications, accident lawyers and insurance information.

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe

Click Thumbnail to download (size 1600 x 1200 pixels)

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe Review

Top of the line side by side with a cool custom look...

The 2012 Rhino sets the standard for versatility, value and reliable performance. Everything you need for off road work or play, including a 181kg cargo bed. The rugged 2012 Yamaha Rhino 700 FI: as capable as any ATV... and then some!

The Rhino 700 Sport Edition Deluxe is built on the same principles of its rugged 700FI brother, but with added style.

The one-piece cast aluminum wheels look great and reduce unsprung weight for even more performance. Fully adjustable piggyback shocks let you tailor the ride for load and conditions. Injection-moulded sun top provides shade, over fenders provide increased splash protection, a Baja-inspired front grab bar adds style and function, and bed rails provide convenient cargo tie-down points. And finishing off the look a yellowish metallic grey paint scheme with special graphics that stands out in any crowd.

The Rhino 700 FI Sport Edition comes with adjustable piggyback shocks, sun top, LED taillights, cast aluminum wheels and more.

One piece cast aluminum wheels, adjustable piggyback shocks, over fenders, Baja-inspired front carry bar, injected molded sun top and more make this truly the world's ultimate Rhino.

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe Highlights:
- Fuel injected 700 engine
- Custom "yellowish metallic grey" body finish
- Piggyback clicker shocks
- Over fenders

2012 Yamaha Rhino 700 FI Auto 4x4 Sport Edition Deluxe Key Features:

• 686cc, liquid-cooled, SOHC, 4-valve, fuel injected, 4-stroke single is a proven performer with excellent performance and a great durability record
• Mikuni 41mm throttle body fuel injection provides the precise fuel/air mixture regardless of outside air temperature or altitude for crisp throttle response. Other FI benefits include choke-free cold starting, reduced emissions and great fuel economy.
• The engine's "mid ship" location centralizes mass in the centre of the Rhino for responsive handling and great suspension performance.
• Key operated electric starting and maintenance-free transistor controlled ignition (TCI).
• Four-valve combustion chamber design maximizes breathing efficiency providing a potent combination of low-rpm torque and right-now throttle response.
• Automatic cam chain tensioner reduces mechanical engine noise and reduces maintenance.
• Ceramic-composite plated cylinder liner provides reduced friction, excellent heat dissipation, outstanding durability and reduced weight.
• Lightweight forged piston rides on a carburized, chrome-moly connecting rod for great durability.
• Dual engine counterbalancers and rubber-damper engine mounts reduce vibration for great operator and passenger comfort.
• Easy access, tools free air box makes it simple to service the re-useable foam air filter. The air filter intake is located under the front hood and helps to reduce intake noise for even greater rider and passenger comfort. Plus it is high mounted to avoid water ingestion.
• High capacity aluminium radiator with cooling fan delivers maximum cooling efficiency even during hot slow speed work days.
• Forward mounted aluminium oil cooler maintains consistent lubricant temperatures for great engine durability. Both the main radiator and oil cooler are located high and inboard of the main frame for extra protection.
• Convenient automotive style spin-on oil filter.
• Quiet, full stainless steel exhaust system resists corrosion and features a screen-type spark arrestor to protect the environment.
• Fully automatic Ultramatic™ transmission is the most advanced drive system in the ORV world. Not only is it simple to use . . . select a forward gear, step on the gas pedal and go, but it also provides all wheel downhill engine braking to reduce brake wear while providing great control. The key feature of Yamaha's exclusive Ultramatic CVT system is the V-belt is under constant tension (unlike a snowmobile CVT) and therefore provides superior no-slip performance, instant hook-up and significantly reduced belt wear.
• Easy to use, console mounted "automotive style" shift lever … just like on a car.
• Fully automatic "Ultramatic" CVT (constantly variable transmission) offers reverse, neutral, high and low ranges. The low range mode improves towing power while also improving "terrainability" in difficult conditions.
• Sealed CVT belt case keeps out water and debris to help prevent belt slippage and wear. Convenient no tools required belt case drain plug … just in case.
• CVT cooling ducts (intake and exhaust) are high-mounted to help prevent water and mud from entering the CVT system while also keeping CVT components cool. Special fan design on the primary clutch sheave also reduces CVT temperatures for extended belt life
• Straight design front and rear drive shafts provide more efficient power delivery and eliminate the need for "U" joints. The drive shafts exit on a straight line from the engine to the differentials
• Servo-controlled "On-Command" system allows you to switch between various drive modes including 2WD, limited-slip 4WD and fully locked 4WD (both front & rear diff locked) - all with a turn of a convenient dash mounted knob. Yamaha's "On-Command" system puts you in total control... you decide which is the best drive mode for the terrain ... not the machine.
• Dash mounted "On-Command" knob and indicator light lets you know what mode you are in.
• Lightweight, compact front differential
• Full square and round tube steel frame is rugged and durable.
• Independent double "A" arm front and rear suspension provides excellent ride comfort
• Adjustable heavy duty "piggy-back" shocks. Front shocks feature spring preload adjustability, 4-way compression and 4-way rebound damping adjustability. Rear shocks feature spring preload adjustability, 11-way compression and 18-way rebound damping adjustability.
• Front and rear wheel travel is 185mm or 7.3"
• Minimum ground clearance is 280mm or 11" for great terrainability
• A single automotive-style brake pedal activates the front and rear hydraulic disc brakes. This 4 wheel disc brake system provides outstanding stopping performance in a variety of conditions. All four discs are tucked inside the rims to prevent damage from rocks, stumps etc.
• Dual 200mm front and dual 185mm rear disc brakes squeezed by twin piston calipers provide excellent stopping power
• Parking brake system utilizes a drive shaft mounted disc located inboard just behind the engine.
• Convenient console mounted automatic-style parking brake lever with dash board warning light
• Aggressive AT25X8-12 front and 25x10-12 rear tires provide excellent off road traction in a wide variety of conditions
• Stylish yet rugged one piece cast aluminium mag wheels.
• Heavy duty 4 ply design increases puncture resistance and tire stiffness

• Note: although these tires look like ATV tires they have a much higher load rating than a standard ATV tire.

• "Tilt able" cargo bed can pack a total of 181 kgs or 400lbs of payload. The inner panels and floor of the bed are high impact plastic to resist dents and rust.
• Convenient single lever tilt design … makes dumping heavy loads easy
• Four tie down points inside the bed for added load security
• Convenient automotive "control" layout. Shifter, parking brake, gas and brake pedals and keyed ignition are just like on a car, for ease of use and familiarity
• Light, responsive rack-and-pinion steering features a fully sealed steering column and double U-jointed steering linkage for smooth, easy operation.
• Operator and passenger seat belts
• Multiple grab handles for added passenger security on rough terrain
• Rear brake lights
• Rugged roto-moulded doors and hip supports / restraints on seat edges
• Sporty design sun top
• Rugged plastic over fenders keep the mud and dirt where it belongs … on the trail
• Quick remove bucket seats with head restraints offer great comfort and support.
• Dash mounted 12 volt DC outlet for powering accessories or electronic devices.
• Automotive style parking brake
• Dash board mounted glove box and small item "cubby hole" in front section of console
• Seat belt and helmet reminder lights on dash board
• Convenient console mounted dual cup holders
• Full length 3 piece high impact plastic skid plate protects the Rhino 700 from rocks, stumps, etc.
• Smooth surface design of the skid plates allows the Rhino 700 to slide more easily over obstacles.
• High impact plastic CV boot guards mounted to front & rear "A" arms help to reduce CV boot damage
• Durable polyethylene CV boots for tear and weather resistance
• Easy to read digital LCD instrument with speedometer, odometer, dual tripmeters and fuel gauge.
• Other features include clock, hour meter, battery voltmeter, 4WD and differential lock status, transmission "gear" indicator, parking brake indicator and seat belt reminder light.
• "On Command" mode indicator lets you know what type of drive is engaged, including a "Diff Lock" indicator light.
• Digital gauge also features an EPS fault indicator and a full range of onboard diagnostic functions
• Centrally located automotive style 2" hitch receiver
• Towing capacity is 550 kg or 1212 lbs.
• Eye catching yellowish metallic grey body finish with special "Sport Edition" emblems
• "Rhino Sport Edition" logo embossed on seat backs.
• Heavy duty Baja inspired front bumper design
• Built in brackets for fast easy mounting of accessory rear bumper
• Winch mounting area in front and below the radiator
• Dual "cat eye" 30 watt Krypton headlights with low and high beam functions
• Large 30 litre fuel tank means lots of "Ks" between fill ups
• Low maintenance, sealed battery with plenty of cold weather cranking power
• High impact plastic floor with "checker plate" pattern for added grip


USA Specifications
US MSRP* $13,399 (Metalic Sandstone) Available from July, 2011

ENGINE
Type 686cc liquid-cooled w/fan, 4-stroke; SOHC, 4 valves
Bore x Stroke 102.0 x 84.0mm
Compression Ratio 9.2:1
Fuel Delivery Yamaha Fuel Injection (YFI) , 41mm
Ignition 32 Bit ECU
Starting System Electric
Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/H, L, N, R
Drive Train Yamaha On-Command® pushbutton;3-way locking differential; 2WD,4WD, locked 4WD; shaft drive

CHASSIS
Suspension / Front Independent double wishbone; 5-way preload adjustment, 7.3-in travel
Suspension / Rear Independent double wishbone; 5-way preload adjustment, 7.3-in travel
Brakes / Front Dual hydraulic disc, twin piston
Brakes / Rear Dual hydraulic disc
Tires / Front AT25x8-12 NHS
Tires / Rear AT25x10-12 NHS

DIMENSIONS
L x W x H 113.6 x 56.6 x 73 in
Wheelbase 75.2 in
Turning Radius 153.5 in
Ground Clearance 12.1 in
Fuel Capacity 7.9 gal
Wet Weight 1199 lb
Bed Capacity 400 lb
Towing Capacity 1212 lb

OTHER
Instrumentation Digital LCD Multifunction display; speedo, odo, dual trip, hour, clock, fuel, and gear position
Lighting Dual 30W Krypton multireflector headlights & dual 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)

Motorcycle Insurance Information www.statefarm.com State Farm® has offered motorcycle insurance for 40 years Protection for the Open Road The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy. Motorcycles Covered by State Farm We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads. Available Coverage Options = Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. = = Bodily injury to yourself because of an accident with an uninsured motorist. = = Damage to your motorcycle caused by an accident. = = Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. = = Customization work, such as paint or upgraded components = = Attached side cars. = Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.
