2010 POLARIS Sportsman 850 XP EPS ATV pictures

2010 POLARIS Sportsman 850 XP EPS
POLARIS ATV pictures, specifications,
accident lawyers and insurance information.

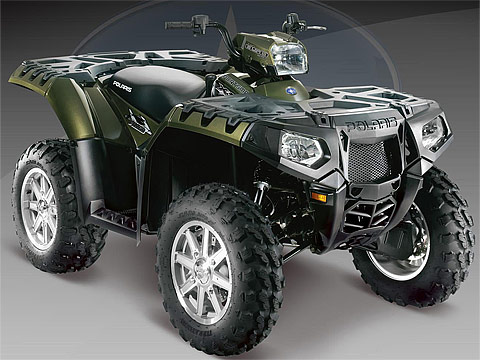

2010 POLARIS Sportsman 850 XP EPS
Click Thumbnail to download (size 1600 x 1200 pixels)



2010 Polaris 850 XP EPS

The 2010 Polaris Sportsman® 850 XP with EPS ATV is engineered for extreme off-road performance. Our most powerful big bore model is ideal for ATV trail riding, ATV hunting, and is the perfect Utility ATV.


Key features are:

70 HP 850cc SOHC Twin Cylinder EFI Engine
Electronic Power Steering (EPS)
Rolled Independent Rear Suspension (IRS)
1,500 lb. (680 kg) Towing Capacity
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer that has the Sportsman® 850 XP EPS ATV.

Specifications
US MSRP* $9,999 USD

Engine Type 4-stroke SOHC, Twin Cyl
Displacement (cc) 850cc
Fuel System Electronic Fuel Injection
Cooling Type Liquid

Final Drive Shaft
Transmission Automatic PVT H/L/N/R/P
Drive System On-Demand True AWD/2WD
Engine Braking System Standard with Active Descent Control

Front Suspension Dual A-Arm 9 in. (22.9 cm) Travel
Rear Suspension Dual A-Arm, Rolled 10.25 in. (26 cm) Travel

Front Brake Single Lever Hydraulic Disc
Rear Brake Hydraulic Rear Foot Brake

Front Tires 26 x 8-14; Terrathon
Rear Tires 26 x 10-14; Terrathon
Wheels Cast Aluminum

Parking Brake N/A
Wheelbase 53 in. (134.6 cm)
Dry Weight XP EPS: 783 lb. (355 kg.) / XP: 774 lb. (351 kg.)
Length/Width/Height 83.25 in./47.6 in./50.75 in. (211.4 cm/120.9 cm/128.9 cm)
Seat Height 37 in. (94 cm)
Ground Clearance 12 in. (30.5 cm)

Fuel Capacity XP EPS: 4.5 gal. (17 ltr.) / XP: 5.25 gal. (19.9 ltr.)
Bed Box Dimension/Capacity N/A
Front Rack 120 lb. (55 kg.)
Rear Rack/Box Capacity 240 lb. (110 kg.)
Payload Capacity N/A
Hitch Towing Rating 1,500 lb. (680.4 kg.)
Unbraked Trailer Towing Capacity

*Based on EU Directive 76/432/EC 1,914 lb. (868 kg.)
Cargo System Lock & Ride
Hitch / Type Std / Receiver

Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet

Colors Stealth Black, Sunset Red, Sagebrush Green

MSRP: US $9,999

* Price shown is the manufacturer's suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.





Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2010 Sportsman 850XP ATV pictures, Accident Lawyers Information

2010 Sportsman 850 XP
POLARIS ATV pictures, specifications, accident lawyers and insurance information.


22010 Sportsman 850 XP
Click Thumbnail to download (size 1600 x 1200 pixels)


2010 Sportsman® 850 XP ATV

The 2010 Polaris Sportsman® 850 XP ATV is engineered for extreme off-road performance. Our most powerful big bore model is ideal for ATV trail riding, ATV hunting, and is the perfect Utility

ATV. Key features are:

70 HP 850cc SOHC Twin Cylinder EFI Engine
Rolled Independent Rear Suspension (IRS)
1,500 lb. (680 kg) Towing Capacity
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer.

*Mossy Oak Camo Additional Cost

Specifications
US MSRP* $8,799 USD

Engine Type 4-stroke SOHC, Twin Cyl
Displacement (cc) 850cc
Fuel System Electronic Fuel Injection
Cooling Type Liquid

Final Drive Shaft
Transmission Automatic PVT H/L/N/R/P
Drive System On-Demand True AWD/2WD
Engine Braking System Standard with Active Descent Control

Front Suspension Dual A-Arm 9 in. (22.9 cm) Travel
Rear Suspension Dual A-Arm, Rolled 10.25 in. (26 cm) Travel

Front Brake Single Lever Hydraulic Disc
Rear Brake Hydraulic Rear Foot Brake

Front Tires 26 x 8-14; Terrathon
Rear Tires 26 x 10-14; Terrathon
Wheels Stamped Steel

Parking Brake Park in Transmission
Wheelbase 53 in. (134.6 cm)
Dry Weight XP EPS: 783 lb. (355 kg.) / XP: 774 lb. (351 kg.)
Length/Width/Height 83.25 in./47.6 in./50.75 in. (211.4 cm/120.9 cm/128.9 cm)
Seat Height 37 in. (94 cm)
Ground Clearance 12 in. (30.5 cm)

Fuel Capacity XP EPS: 4.5 gal. (17 ltr.) / XP: 5.25 gal. (19.9 ltr.)
Bed Box Dimension/Capacity N/A
Front Rack 120 lb. (55 kg.)
Rear Rack/Box Capacity 240 lb. (110 kg.)
Payload Capacity N/A
Hitch Towing Rating 1,500 lb. (680.4 kg.)
Unbraked Trailer Towing Capacity

*Based on EU Directive 76/432/EC 1,914 lb. (868 kg.)
Cargo System Lock & Ride
Hitch / Type Std / Receiver

Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet

Colors Indy Red, Sage Green, Mossy Oak Break-Up

MSRP: US $8,799
* Price shown is the manufacturer's suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.




Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2010 POLARIS Ranger 800HD ATV Accident Lawyers Information

2010 POLARIS Ranger 800 HD
POLARIS ATV pictures, specifications, accident lawyers and insurance information.


2010 POLARIS Ranger 800 HD
Click Thumbnail to download (size 1600 x 1200 pixels)



2010 Polaris Ranger 800 HD

The 2010 Polaris RANGER 800 HD® Side-By-Side is built and designed with hard-working technology making it the ultimate side-by-side — perfect for farming, ranching, hunting, contracting & construction work.

40 HP 760cc Twin Cylinder EFI Engine
Self-Leveling Suspension
Electronic Power Steering (EPS)
1,500 lb. (680.4 kg) Payload Capacity
2,000 lb. (907.2 kg) Towing Capacity
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer that has the RANGER 800 HD® Side-By-Side.

Specifications
US MSRP* $12,599 USD

Engine Type 4-Stroke Twin Cylinder
Displacement/HP 760cc
Fuel System Electronic Fuel Injection
Cooling Type Liquid
Fuel Capacity 9 gal. (34.1 ltr.)

Final Drive Shaft
Transmission Automatic PVT H/L/N/R
Drive System On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Braking System N/A

Front Suspension Dual A-Arm 9.6 in. (24.4 cm) Travel
Rear Suspension Self-Leveling Dual A-Arm, IRS 9 in. (22.9 cm) Travel

Front Brake Hydraulic Disc with Dual-Bore Front Calipers
Rear Brake Hydraulic Disc with Dual-Bore Front Calipers

Front Tires 26 x 9-12; PXT
Rear Tires 26 x 11-12; PXT
Wheels Aluminum

Parking Brake Hand-Actuated
Wheelbase 76 in. (193 cm)
Dry Weight 1,262 lb. (572 kg.)
Length/Width/Height 114 in./60 in./76 in. (290 cm/152 cm/193 cm)
Seat Height N/A
Ground Clearance 12 in. (30.5 cm)

Bed Box Dimension/Capacity 54 x 36.5 x 11.5 in. (137 x 93 x 29 cm) / 1000 lbs. (453.6 kg)
Front Rack N/A
Rear Rack/Box Capacity N/A
Hitch Towing Rating 2,000 lb. (907.2 kg.)
Unbraked Trailer Towing Capacity

*Based on EU Directive 76/432/EC N/A
Cargo System Lock & Ride
Hitch / Type Std / Receiver

Instrumentation Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlets (2)

Colors Sage Green

MSRP: US $12,599
* Price shown is the manufacturer's suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.




Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2010 POLARIS Outlaw 450 MXR ATV pictures

2010 POLARIS Outlaw 450 MXR
POLARIS ATV pictures, specifications, accident lawyers and insurance information.


2010 POLARIS Outlaw 450 MXR
Click Thumbnail to download (size 1600 x 1200 pixels)




2010 Polaris Outlaw 450 MXR

The 2010 Polaris Outlaw® 450 MXR ATV is stock race-ready & purpose-built for the race track. This KTM® powered straight-axled, wickedly fast sport quad is ideal ATV for high-performance ATV Racing.

Key features are:

448cc KTM® Racing Engine
Fox Podium X® Racing Shox With Piggyback Reservoirs
Maxxis® RAZR® MX Radial Tires
Self-Adjusting Magura® Hydraulic Clutch
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer that has the Outlaw® 450 MXR ATV.

Specifications
US MSRP* $7,399 USD

Engine Type 4-Stroke KTM Racing, Single Cylinder
Displacement (cc) 448cc
Fuel System Carbureted
Cooling Type Liquid

Final Drive 520 O-ring Chain
Transmission Hydraulic Manual Clutch/Manual Shift 5-Speed with Reverse
Drive System 2WD
Engine Braking System N/A

Front Suspension Dual A-Arm with 10 in. (25.4 cm) Travel
Rear Suspension Mono-Shock Swingarm with 10 in. (25.4 cm) Travel

Front Brake Hydraulic Disc with Dual-Piston Calipers
Rear Brake Hydraulic Disc

Front Tires 21 x 6-10; Maxxis RAZR MX
Rear Tires 18 x 9-10; Maxxis RAZR MX
Wheels Spun Aluminum

Parking Brake Park in Transmission
Wheelbase 50.5 in. (128.3 cm)
Dry Weight 359 lb. (163 kg.)
Length/Width/Height 71.5 in./47 in./43.7 in. (181.6 cm/119.4 cm/111 cm)
Seat Height 30.7 in. ( 78 cm)
Ground Clearance 5 in. (12.7 cm)

Fuel Capacity 3 gal. (11.4 ltr.)
Bed Box Dimension/Capacity N/A
Front Rack N/A
Rear Rack/Box Capacity N/A
Payload Capacity N/A
Hitch Towing Rating N/A
Unbraked Trailer Towing Capacity

*Based on EU Directive 76/432/EC N/A
Cargo System N/A
Hitch / Type N/A

Instrumentation N/R Light, Hi-Temp Light

Colors Indy Red/White

MSRP: US $7,399
* Price shown is the manufacturer's suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.



Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2010 Polaris Outlaw 525 IRS ATV pictures, Lawyers Information

2010 Polaris Outlaw 525 IRS
POLARIS ATV pictures, specifications, accident lawyers and insurance information.



2010 Polaris Outlaw 525 IRS
Click Thumbnail to download (size 1600 x 1200 pixels)





2010 Polaris Outlaw 525 IRS

The 2010 Polaris Outlaw® 525 IRS ATV is race proven & purpose-built for trail riding. This KTM® powered fast-accelerating stock sport quad is ideal for high-performance ATV trail riding, ATV Racing, and is the perfect ATV for the sand dunes.

Key features are:

510cc KTM® Racing Engine
PRO Independent Rear Suspension (PRO IRS)
Fox Podium X® Racing Shox
Maxxis® RAZR® Radial Tires
Find out more about its features, specifications, pricing, comparisons, reviews, accessories, videos, images, 360 views, custom brochures, downloads, and locate your nearest dealer that has the Outlaw® 525 IRS ATV.

Specifications
US MSRP* $7,699 USD

Engine Type 4-Stroke KTM Racing, Single Cylinder
Displacement (cc) 510cc
Fuel System Carbureted
Cooling Type Liquid

Final Drive 520 O-Ring Chain
Transmission Hydraulic Manual Clutch/Manual Shift 5-Speed with Reverse
Drive System 2WD
Engine Braking System N/A

Front Suspension Dual A-arm with 10 in. (25.4 cm) Travel
Rear Suspension Pro IRS with 10 in. (25.4 cm) Travel

Front Brake Dual Hydraulic Disc with dual piston calipers
Rear Brake Hydraulic Disc

Front Tires 21 x 7-10; Maxxis RAZR Radial
Rear Tires 20 x 10-10; Maxxis RAZR Radial
Wheels Spun Aluminum

Parking Brake Park in Transmission
Wheelbase 50.5 in. (128.3 cm)
Dry Weight 389 lb. (177 kg.)
Length/Width/Height 71.5 in./47.5 in./45 in. (181.6 cm/120.7 cm/114.3 cm)
Seat Height 32 in. (81.3 cm)
Ground Clearance 11 in. (27.9 cm)

Fuel Capacity 3 gal. (11.4 ltr.)
Bed Box Dimension/Capacity N/A
Front Rack N/A
Rear Rack/Box Capacity N/A
Payload Capacity N/A
Hitch Towing Rating N/A
Unbraked Trailer Towing Capacity

*Based on EU Directive 76/432/EC N/A
Cargo System N/A
Hitch / Type N/A

Instrumentation N/R Light, Hi-Temp Light

Colors Indy Red/White

MSRP: US $7,699
* Price shown is the manufacturer's suggested retail price (MSRP) and is subject to change. MSRP excludes applicable taxes, title, registration, license, and documentary, installation, setup and destination fees. See a Polaris dealer for specific pricing information.




Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

Monday, March 26, 2012

ATV pictures 2011 KTM 525 XC

2011 KTM 525 XC
KTM ATV pictures, specifications, accident lawyers and insurance information.



2011 KTM 525 XC
Click Thumbnail to download (size 1600 x 1200 pixels)



The KTM Enduro flagship sets new standards in the cross-country sector. With extremely high performance and perfect handling, the 525 XC is the ideal candidate for demanding trails or dune adventures.

Specifications

Model:    KTM 525 XC
Year:    2011
Category:    ATV

Engine and transmission
Displacement:    510.40 ccm (31.14 cubic inches)
Engine type:    Single cylinder, four-stroke
Compression:    11.0:1
Bore x stroke:    95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves per cylinder:    4
Fuel system:    Carburettor. Keihin FCR MX 39
Lubrication system:    Dry sump, pressure lubrication with 2 Eaton pumps
Cooling system:    Liquid
Gearbox:    5-speed
Clutch:    Wet mDouble disk clutch, operated hydraulically
Exhaust system:    Aluminum XC

Chassis, suspension, brakes and wheels
Frame type:    Chromoly
Front suspension:    WP fully adjustable, twin A-arms
Front suspension travel:    275 mm (10.8 inches)
Rear suspension:    WP PDS mono-shock, fully adjustable, swingarm
Rear suspension travel:    272 mm (10.7 inches)
Front tyre dimensions:    21/7-10
Rear tyre dimensions:    20/11-9
Front brakes:    Double disc. Magura floating WAVE discs, 4-piston fixed caliper
Front brakes diameter:    180 mm (7.1 inches)
Rear brakes:    Single disc. Magura disc, single piston floating caliper
Rear brakes diameter:    200 mm (7.9 inches)

Physical measures and capacities
Dry weight:    168.0 kg (370.4 pounds)
Seat height:    820 mm (32.3 inches) If adjustable, lowest setting.
Ground clearance:    290 mm (11.4 inches)
Wheelbase:    1,280 mm (50.4 inches)
Fuel capacity:    13.40 litres (3.54 gallons)

Other specifications
Starter:    Electric
Color options:    Orange/black



Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2010 KTM 525 XC ATV pictures and specifications

2010 KTM 525 XC
KTM ATV pictures, specifications, accident lawyers and insurance information.


2010 KTM 525 XC
Click Thumbnail to download (size 1600 x 1200 pixels)




KTM's profilation of this bike
Born into superiority. This sentence applies to no other ATV better than to the 525 XC. The KTM Enduro flagship sets new standards in the cross-country sector. With extremely high performance and perfect handling, the 525 XC is the ideal candidate for demanding trails or dune adventures.

Specifications

Model:    KTM 525 XC ATV
Year:    2010
Category:    ATV

Engine and transmission
Displacement:    510.40 ccm (31.14 cubic inches)
Engine type:    Single cylinder, four-stroke
Compression:    11.0:1
Bore x stroke:    95.0 x 72.0 mm (3.7 x 2.8 inches)
Valves per cylinder:    4
Fuel system:    Carburettor. Keihin FCR MX 39
Fuel control:    SOHC
Ignition:    Kokusan digital
Lubrication system:    Dry sump, pressure lubrication with 2 Eaton pumps
Cooling system:    Liquid
Gearbox:    5-speed
Clutch:    Wet mDouble disk clutch, operated hydraulically
Exhaust system:    Aluminum XC

Chassis, suspension, brakes and wheels
Frame type:    Chromoly
Front suspension:    WP fully adjustable, twin A-arms
Front suspension travel:    275 mm (10.8 inches)
Rear suspension:    WP PDS mono-shock, fully adjustable, swingarm
Rear suspension travel:    272 mm (10.7 inches)
Front tyre dimensions:    21/7-10
Rear tyre dimensions:    20/11-9
Front brakes:    Single disc
Front brakes diameter:    180 mm (7.1 inches)
Rear brakes:    Single disc
Rear brakes diameter:    200 mm (7.9 inches)

Physical measures and capacities
Dry weight:    168.0 kg (370.4 pounds)
Seat height:    820 mm (32.3 inches) If adjustable, lowest setting.
Ground clearance:    290 mm (11.4 inches)
Wheelbase:    1,280 mm (50.4 inches)
Fuel capacity:    13.40 litres (3.54 gallons)

Other specifications
Starter:    Electric
Color options:    Orange




Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2008 KTM 450 SX ATV pictures, specifications

2008 KTM 450 SX
KTM ATV pictures, specifications, accident lawyers and insurance information.


2008 KTM 450 SX
Click Thumbnail to download (size 1600 x 1200 pixels)



Displacement 449 cc
Bore x stroke 97 x 60,8 mm
Compression ratio 12.5:1
Starter Electric starter / 4 Ah
Transmission 5-speed
Carburetor Keihin FCR-MX 41
Lubrication Dry sump, pressure lubrication with 2 Eaton pumps
Engine lubrication 10W50
Primary drive 31:78
Final drive 14:38
Cooling Liquid cooling
Clutch Wet multi-disc clutch, operated hydraulically
Ignition Kokusan digital

Frame Chromoly
Subframe Aluminum 7020
Handlebar Magura tapered aluminum, Ø 28 mm
Front suspension WP fully adjustable, twin A-arms
Rear suspension WP PDS mono-shock, fully adjustable, swingarm
Suspension travel front/rear 244/258 mm (9.61/10.16")
Front brake 180 mm (7.08") floating WAVE discs, 4-piston fixed caliper x 2
Rear brake 200 mm (7.87") disc, single piston floating caliper
Rims, front/rear 5.0" x 10.0"; 8.0" x 9.0" Douglas
Tires, front/rear 20" x 6"-10"; 18" x 10"-8" MAXXIS Razor MX Soft
Chain 520 X-ring chain 5/8 x 1/4"
Main silencer Aluminum SX Racing w / Spark Arrestor
Wheel base 1280 mm (50.39")
Ground clearance (unloaded) 265 mm (10.43")
Seat height 795 mm (31.3")
Tank capacity approx. 10.3 liters (2.72 gal)
Weight (no fuel) approx. 165 kg (363.8 lbs)



Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

Sunday, March 25, 2012

2012 HONDA FourTrax Foreman 4x4 TRX500FM ATV pictures

2012 HONDA FourTrax Foreman 4x4 TRX500FM
HONDA ATV pictures, specifications, accident lawyers and insurance information.


2012 HONDA FourTrax Foreman 4x4 TRX500FM
Click Thumbnail to download (size 1600 x 1200 pixels)





2012 Honda FourTrax Foreman 4x4 TRX500FM Review

Built to work..

For 2012, the FourTrax® Foreman® line of 4x4 ATVs boasts a brand-new engine plus a re-engineered chassis featuring a new single-shock rear-suspension system-upgrades that make this brawny ranch hand tougher than ever, whether the day calls for nonstop work or a pleasant weekend ride up to that special fishing stream. Now equipped with an all-new and sophisticated liquid-cooled 475cc single-cylinder OHV four-stroke engine, the Foreman also features a new fuel injection system with 36mm throttle body for instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting. The rear suspension system is lighter than before, thanks to a new design centered around a single, high-quality shock for increased comfort, precision and work capabilities. Also, a shorter wheelbase aids agile handling and helps produce a tighter turning radius. Add in all new styling with a rugged and tough look and you'll see why with credentials like this, the Foreman is the perfect way to lighten the day's work or whisk you away on a day-ride adventure.

Honda's Foreman family of all-terrain vehicles have always been the machines to count on when you need an ATV that's not afraid to take on the tough jobs. And this year they're better than ever: Stronger, smarter, even harder working, whether it's around the ranch, factory, or your favorite trail.

How can that be? Because in addition to four-wheel drive and Honda's innovative Electric Power Steering, the Foreman line now features Honda's Programmed Fuel Injection (PGM-FI). That means you get more efficient fuel delivery, easier starting in cold conditions, and less maintenance. While we were at it, we gave the Foreman a new look too, with new, aggressively styled bodywork, plusher suspension, and a more comfortable seat.

So tackling those tough jobs just got a whole lot easier if you hire the right Foreman to take charge of your jobsite.

Fuel-Injected Performance

The Foreman's new fuel-injection system means you'll get an ATV that works harder, with better fuel management and plenty of power and torque for those tough jobs.
Learn More .

A whole new look.

The Foreman line's new bodywork gives it a tough new look. But it does more than just look good: It's still designed to last, despite the scrapes and dings of the job or the woods, to help protect you from mud and other debris, and to keep looking good as long as you own your Honda.
Learn More .

Works hard. Rides easy.

The better your new Foreman rides, the shorter your workday will seem. That's why we gave our 2012 Foreman line a plusher suspension, better ergonomics, and a new, softer seat. It all adds up to a Foreman with a more comfortable ride that is looking out for number one—and that's you

High-Tech Industry.

Sure, they're rugged and reliable, but Honda Utility ATVs are also built to make your life easier, whether you're working the back 40 or your favorite trail, and we achieve this with some of the most revolutionary technology in the industry. Like Electric Power Steering, designed with torque and speed sensors to reduce steering effort (and rider fatigue) when the going gets tough. Independent Rear Suspension (IRS) that allows both rear wheels to move independently, helping you maintain traction and control even in rough terrain.

And there's a transmission for every type of use. Our continuously variable, fully automatic Hondamatic™ transmission (available on the Foreman Rubicon), is the smoothest ATV transmission you'll ever experience. The three-speed Honda Automatic transmission (an automotive-style torque converter) is available on our FourTrax Rincon. And the Rancher AT has the Honda automatic dual-clutch, five-speed transmission, which features one of the slickest- and quickest-shifting gearboxes on dirt.

And this is just for starters, as our feature-packed machines are all built with the same purpose in mind: to work and play hard so you don't have to.

Our engineers work hard, so you don't have to.

The new Foreman line is a great example of how smarter is better. The combination of this year's new fuel-injection system and revised suspension team up with such proven Foreman features as our solid rear axle for better towing performance, Honda's exclusive longitudinally mounted engines for superior driveline efficiency, and Honda's unmatched reputation for durability, quality, and reliability.

Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

2012 Honda FourTrax Foreman 4x4 TRX500FM Features and Benefits:

New for 2012
- All-new liquid-cooled 475cc single-cylinder OHV four-stroke engine with a higher compression ratio delivers plenty of hard-working power.
- New fuel injection system features a 36mm throttle body and provides instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting.
- All-new rear suspension system combines a new steel swingarm design with a single high-quality shock absorber to produce 6.9 inches of supple, well-controlled travel.
- New, larger 196mm dual front hydraulic disc brakes.
- New multi-function LCD digital meter is compact, tough and waterproof, and features large readouts for fuel gauge, gear position, speedometer, odometer, tripmeter, hourmeter and oil change reminder. Meter housing includes LED lights for Reverse, Neutral, oil temperature and front differential indicator.
- New body styling with a tough, rugged and more aggressive look featuring large oversized fenders front and rear for exceptional mud and splash protection.

Features
- Revolutionary Electric Power Steering (EPS).
- TraxLok® selectable 2WD/4WD system.
- Large cargo racks front and rear allow payloads of 66 and 133 pounds, respectively and feature an improved design for easier lashing of cargo.
- Heavy-duty trailer hitch with towing capacity of 850 pounds.
- Unique, rear-opening storage compartment allows access when rack is loaded.
- Waterproof accessory socket provides 12-volt, 10-amp power with a built-in fuse.
- Water-resistant left-side glove-box compartment.
- Triple headlight system with single 45-watt upper light and dual 30-watt lower lights with multi-reflector lenses for optimal light distribution plus an LED brake light/taillight.
- Uniquely designed floorboards allow the rider's feet to grip the footrests while keeping mud and debris away.
- Assembled in Timmonsville, South Carolina.
- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.

Engine/Drivetrain
- Liquid-cooled 475cc single-cylinder OHV four-stroke engine is longitudinally mounted in the frame allowing direct driveshaft alignment to front and rear wheels for improved drivetrain efficiency.
- USDA-qualified spark arrester/muffler is constructed of stainless steel.
- Super-heavy-duty automatic clutch for excellent driveability and towing capacity.
- Rugged five-speed transmission with Reverse.
- Maintenance-free shaft drive with torque-sensing front differential routes power directly from the longitudinally mounted engine without inefficient directional changes.
- Powerful 416-watt AC generator.
- New pre-filled GYZ16H 16-Ah battery.

Chassis/Suspension
- Rugged frame and suspension provide an exceptional 7.6 inches of ground clearance.
- Independent double-wishbone front suspension uses new, high-quality shock absorbers to provide 6.7 inches of supple travel while a new steel swingarm design produces 6.9 inches of rear wheel travel.
- Rugged, large-diameter Maxxis 25 x 8-12 front, 25 x 10-12 rear tires provide added ground clearance while maintaining precise handling.
- Large 196mm dual front hydraulic disc brakes and sealed 180mm mechanical rear drum.
- Dual front disc-brake calipers feature a patented built-in scraper system to remove mud and snow from inside the front wheel to help prevent buildup between caliper and rim to ensure consistent braking performance.
- Brake pads feature thick, long-wear material with improved mud durability, feel and control. Pads have an internal scraper that gives audible warning when pad life is low.

Honda Genuine Accessories **
- Winch Kit, Cargo Boxes (Front/Rear), Soft Rack Bags (Front/Rear), Fender Bag, Frame Skid Plate, Front A-Arm Guards, Rear Swingarm Guard, Auxiliary Light Interupt Switch, Recoil Starter Kit, Storage Cover

** WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

2012 Honda FourTrax Foreman 4x4 Options & Pricing:

Honda's line of FourTrax Foreman ATVs give you what you want, without breaking the bank. In terms of hard-working value, the Foreman line is unbeatable, offering proven features like powerful 475cc overhead-valve engines with fuel injection, TraxLok® selectable 2WD/4WD, and a dependable five-speed transmission. Sick of fighting ruts, rocks, and sidehills? Then get a Foreman with Honda's revolutionary Electric Power Steering (EPS)—the smartest, most innovative power steering you'll ever experience on an ATV. Our push-button Electric Shift Program (ESP) is a big boost when you're wearing winter boots covered with mud. And best of all, they feature our new styling for 2012.

FourTrax Foreman 4x4
MSRP $6,899*
Features & Options
- Programmed Fuel Injection (PGM-FI)
- 475cc liquid-cooled single-cylinder four-stroke engine
- TraxLok® selectable 2WD/4WD

FourTrax Foreman 4x4 ES
MSRP $7,099*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Shift Program

FourTrax Foreman 4x4 with Power Steering
MSRP $7,499*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Power Steering

FourTrax Foreman 4x4 ES with Power Steering
MSRP $7,699*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- ESP and EPS

Specifications
US MSRP*: $6,899 USD

Model: TRX500FM / TRX500FPM (with EPS)
Engine Type: 475cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 92mm x 71.5mm
Compression Ratio: 9.5:1
Induction: Keihin 36mm throttle body
Ignition: Full-transistorized type with electronic advance
Starter: Electric with optional auxiliary recoil
Clutch: Automatic
Transmission: Five-speed with Reverse
Driveline: Direct front and rear driveshafts with TraxLok and torque-sensitive front differential

Suspension
Front: Independent double-wishbone; 6.7 inches travel
Rear: Swingarm with single shock; 6.9 inches travel

Brakes
Front: Dual hydraulic 196mm discs
Rear: Sealed 180mm mechanical drum

Tires
Front: 25 x 8-12
Rear: 25 x 10-12

Length: 83.7 inches
Width: 47.4 inches
Height: 47.1 inches
Seat Height: 34.7 inches
Ground Clearance: 7.6 inches
Wheelbase: 50.4 inches
Turning Radius: 10.5 feet
Fuel Capacity: 4.0 gallons, including 1.2-gallon reserve
Colors: Red, Olive, Natural Gear™ Camouflage
Curb Weight*: 626 pounds (TRX500FM) / 642 pounds (TRX500FPM)



Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2012 HONDA FourTrax Foreman 4x4 ES EPS TRX500FPE

2012 HONDA FourTrax Foreman 4x4 ES EPS TRX500FPE
HONDA ATV pictures, specifications, accident lawyers and insurance information.


2012 HONDA FourTrax Foreman 4x4 ES EPS TRX500FPE
Click Thumbnail to download (size 1600 x 1200 pixels)






2012 Honda FourTrax Foreman 4x4 ES with Electric Power Steering TRX500FPE Review

Built to work - even harded and Electric Power Steering helps out.

Over the years, the FourTrax® Foreman® series of 4x4 ATVs have proven themselves to be hard-working partners that also know more than a thing or two about recreation. For 2012, the Foreman line of ATVs boasts a brand-new liquid-cooled 475cc single-cylinder OHV four-stroke engine that's powerful enough for taking on those extra-tough jobs. The introduction of a new fuel injection system with 36mm throttle body for instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting adds to the Foreman's performance package. New rugged and tough looking body work adorn the rolling chassis that has been re-engineered as well, featuring an all-new and lighter rear suspension system incorporating a single, high-quality shock for increased comfort, precision and work capabilities, plus a shorter wheelbase for agile handling and a tighter turning radius. Add to that Honda's renowned Electric Shift Program (ESP®) that delivers push-button convenience for shifting, plus the option of Electric Power Shifting (EPS), and you've got one of the strongest, hardest working rides available today.

Honda's Foreman family of all-terrain vehicles have always been the machines to count on when you need an ATV that's not afraid to take on the tough jobs. And this year they're better than ever: Stronger, smarter, even harder working, whether it's around the ranch, factory, or your favorite trail.

How can that be? Because in addition to four-wheel drive and Honda's innovative Electric Power Steering, the Foreman line now features Honda's Programmed Fuel Injection (PGM-FI). That means you get more efficient fuel delivery, easier starting in cold conditions, and less maintenance. While we were at it, we gave the Foreman a new look too, with new, aggressively styled bodywork, plusher suspension, and a more comfortable seat.

So tackling those tough jobs just got a whole lot easier if you hire the right Foreman to take charge of your jobsite.

Fuel-Injected Performance

The Foreman's new fuel-injection system means you'll get an ATV that works harder, with better fuel management and plenty of power and torque for those tough jobs.
Learn More .

A whole new look.

The Foreman line's new bodywork gives it a tough new look. But it does more than just look good: It's still designed to last, despite the scrapes and dings of the job or the woods, to help protect you from mud and other debris, and to keep looking good as long as you own your Honda.
Learn More .

Works hard. Rides easy.

The better your new Foreman rides, the shorter your workday will seem. That's why we gave our 2012 Foreman line a plusher suspension, better ergonomics, and a new, softer seat. It all adds up to a Foreman with a more comfortable ride that is looking out for number one—and that's you

High-Tech Industry.

Sure, they're rugged and reliable, but Honda Utility ATVs are also built to make your life easier, whether you're working the back 40 or your favorite trail, and we achieve this with some of the most revolutionary technology in the industry. Like Electric Power Steering, designed with torque and speed sensors to reduce steering effort (and rider fatigue) when the going gets tough. Independent Rear Suspension (IRS) that allows both rear wheels to move independently, helping you maintain traction and control even in rough terrain.

And there's a transmission for every type of use. Our continuously variable, fully automatic Hondamatic™ transmission (available on the Foreman Rubicon), is the smoothest ATV transmission you'll ever experience. The three-speed Honda Automatic transmission (an automotive-style torque converter) is available on our FourTrax Rincon. And the Rancher AT has the Honda automatic dual-clutch, five-speed transmission, which features one of the slickest- and quickest-shifting gearboxes on dirt.

And this is just for starters, as our feature-packed machines are all built with the same purpose in mind: to work and play hard so you don't have to.

Our engineers work hard, so you don't have to.

The new Foreman line is a great example of how smarter is better. The combination of this year's new fuel-injection system and revised suspension team up with such proven Foreman features as our solid rear axle for better towing performance, Honda's exclusive longitudinally mounted engines for superior driveline efficiency, and Honda's unmatched reputation for durability, quality, and reliability.

Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

2012 Honda FourTrax Foreman 4x4 ES with Electric Power Steering TRX500FPE Features and Benefits:


New for 2012
- All-new liquid-cooled 475cc single-cylinder OHV four-stroke engine with a higher compression ratio delivers plenty of hard-working power.
- New fuel injection system features a 36mm throttle body and provides instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting.
- All-new rear suspension system combines a new steel swingarm design with a single high-quality rear shock absorber to produce 6.9 inches of supple, well-controlled travel.
- New, larger 196mm dual front hydraulic disc brakes.
- New multi-function LCD digital meter is compact, tough and waterproof, and features large readouts for fuel gauge, gear position, speedometer, odometer, tripmeter, hourmeter and oil change reminder. Meter housing includes LED lights for Reverse, Neutral, oil temperature and front differential indicator.
- New body styling with a tough, rugged and more aggressive look featuring large oversized fenders front and rear for exceptional mud and splash protection.

Features
- Revolutionary Electric Power Steering (EPS).
- Electric Shift Program (ESP) provides the convenience of push-button shifting.
- TraxLok® selectable 2WD/4WD system.
- Large cargo racks front and rear allow payloads of 66 and 133 pounds, respectively and feature an improved design for easier lashing of cargo.
- Heavy-duty trailer hitch with towing capacity of 850 pounds.
- Unique, rear-opening storage compartment allows access when rack is loaded.
- Waterproof accessory socket provides 12-volt, 10-amp power with a built-in fuse.
- Water-resistant left-side glove-box compartment.
- Triple headlight system with single 45-watt upper light and dual 30-watt lower lights with multi-reflector lenses for optimal light distribution plus an LED brake light/taillight.
- Uniquely designed floorboards allow the rider's feet to grip the footrests while keeping mud and debris away.
- Assembled in Timmonsville, South Carolina.
- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.

Engine Drivetrain
- Liquid-cooled 475cc single-cylinder OHV four-stroke engine is longitudinally mounted in the frame allowing direct driveshaft alignment to front and rear wheels for improved drivetrain efficiency.
- USDA-qualified spark arrester/muffler is constructed of stainless steel.
- Super-heavy-duty automatic clutch for excellent driveability and towing capacity.
- Convenient five-speed transmission with Reverse.
- Maintenance-free shaft drive with torque-sensing front differential routes power directly from the longitudinally mounted engine without inefficient directional changes.
- Powerful 416-watt AC generator.
- New pre-filled GYZ16H 16-Ah battery.

Chassis/Suspension
- Rugged frame and suspension provide an exceptional 7.6 inches of ground clearance.
- Independent double-wishbone front suspension uses new, high-quality shock absorbers to provide 6.7 inches of travel while a new steel swingarm design produces 6.9 inches of rear wheel travel.
- Rugged, large-diameter Maxxis 25 x 8-12 front, 25 x 10-12 rear tires provide added ground clearance while maintaining precise handling.
- Large 196mm dual front hydraulic disc brakes and sealed 180mm mechanical rear drum.
- Dual front disc-brake calipers feature a patented built-in scraper system to remove mud and snow from inside the front wheel to help prevent buildup between caliper and rim to ensure consistent braking performance.
- Brake pads feature thick, long-wear material with improved mud durability, feel and control. Pads have an internal scraper that gives audible warning when pad life is low.

Honda Genuine Accessories **
- Winch Kit, Cargo Boxes (Front/Rear), Soft Rack Bags (Front/Rear), Fender Bag, Frame Skid Plate, Front A-Arm Guards, Rear Swingarm Guard, Auxiliary Light Interupt Switch, Recoil Stater Kit, Storage Cover

** WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

2012 Honda FourTrax Foreman 4x4 Options & Pricing:
Honda's line of FourTrax Foreman ATVs give you what you want, without breaking the bank. In terms of hard-working value, the Foreman line is unbeatable, offering proven features like powerful 475cc overhead-valve engines with fuel injection, TraxLok® selectable 2WD/4WD, and a dependable five-speed transmission. Sick of fighting ruts, rocks, and sidehills? Then get a Foreman with Honda's revolutionary Electric Power Steering (EPS)—the smartest, most innovative power steering you'll ever experience on an ATV. Our push-button Electric Shift Program (ESP) is a big boost when you're wearing winter boots covered with mud. And best of all, they feature our new styling for 2012.

FourTrax Foreman 4x4
MSRP $6,899*

Features & Options
- Programmed Fuel Injection (PGM-FI)
- 475cc liquid-cooled single-cylinder four-stroke engine
- TraxLok® selectable 2WD/4WD

FourTrax Foreman 4x4 ES
MSRP $7,099*

Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Shift Program

FourTrax Foreman 4x4 with Power Steering
MSRP $7,499*

Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Power Steering

FourTrax Foreman 4x4 ES with Power Steering
MSRP $7,699*

Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- ESP and EPS

Specifications
US MSRP*: $7,699 USD

Model: TRX500FE / TRX500FPE (with EPS)
Engine Type: 475cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 92mm x 71.5mm
Compression Ratio: 9.5:1
Induction: Keihin 36mm throttle body
Ignition: Full-transistorized type
with electronic advance
Starter: Electric with optional auxiliary recoil
Clutch: Automatic
Transmission: ESP five-speed with Reverse
Driveline: Direct front and rear driveshafts with TraxLok and torque-sensitive front differential

Suspension
Front: Independent double-wishbone; 6.7 inches travel
Rear: Swingarm with single shock; 6.9 inches travel

Brakes
Front: Dual hydraulic 196mm disc
Rear: Sealed 180mm mechanical drum

Tires
Front: 25 x 8-12
Rear: 25 x 10-12
Length: 83.7 inches
Width: 47.4 inches
Height: 47.1 inches
Seat Height: 34.7 inches
Ground Clearance: 7.6 inches
Wheelbase: 50.4 inches
Turning Radius: 10.5 feet
Fuel Capacity: 4.0 gallons, including 1.2-gallon reserve
Colors: Red, Olive, Natural Gear™ Camouflage
Curb Weight*: 628 pounds / 644 pounds



Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co

2012 Honda FourTrax Foreman 4x4 ES TRX500FE

2012 Honda FourTrax Foreman 4x4 ES TRX500FE
HONDA ATV pictures, specifications, accident lawyers and insurance information.


2012 Honda FourTrax Foreman 4x4 ES TRX500FE
Click Thumbnail to download (size 1600 x 1200 pixels)





2012 Honda FourTrax Foreman 4x4 ES TRX500FE Review

Built to work - even harder.

Over the years, the FourTrax® Foreman® series of 4x4 ATVs have proven themselves to be hard-working partners that also know more than a thing or two about recreation. For 2012, the Foreman line of ATVs boasts a brand-new liquid-cooled 475cc single-cylinder OHV four-stroke engine that's powerful enough for taking on those extra-tough jobs. The introduction of a new fuel injection system with 36mm throttle body for instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting adds to the Foreman's performance package. New rugged and tough looking body work adorn the rolling chassis that has been re-engineered as well, featuring an all-new and lighter rear suspension system incorporating a single, high-quality shock for increased comfort, precision and work capabilities, plus a shorter wheelbase for agile handling and a tighter turning radius. Add to that Honda's renowned Electric Shift Program (ESP®) that delivers push-button convenience for shifting, plus the option of Electric Power Shifting (EPS), and you've got one of the strongest, hardest working rides available today.

Honda's Foreman family of all-terrain vehicles have always been the machines to count on when you need an ATV that's not afraid to take on the tough jobs. And this year they're better than ever: Stronger, smarter, even harder working, whether it's around the ranch, factory, or your favorite trail.

How can that be? Because in addition to four-wheel drive and Honda's innovative Electric Power Steering, the Foreman line now features Honda's Programmed Fuel Injection (PGM-FI). That means you get more efficient fuel delivery, easier starting in cold conditions, and less maintenance. While we were at it, we gave the Foreman a new look too, with new, aggressively styled bodywork, plusher suspension, and a more comfortable seat.

So tackling those tough jobs just got a whole lot easier if you hire the right Foreman to take charge of your jobsite.

Fuel-Injected Performance

The Foreman's new fuel-injection system means you'll get an ATV that works harder, with better fuel management and plenty of power and torque for those tough jobs.
Learn More .

A whole new look.

The Foreman line's new bodywork gives it a tough new look. But it does more than just look good: It's still designed to last, despite the scrapes and dings of the job or the woods, to help protect you from mud and other debris, and to keep looking good as long as you own your Honda.
Learn More .

Works hard. Rides easy.

The better your new Foreman rides, the shorter your workday will seem. That's why we gave our 2012 Foreman line a plusher suspension, better ergonomics, and a new, softer seat. It all adds up to a Foreman with a more comfortable ride that is looking out for number one—and that's you

High-Tech Industry.

Sure, they're rugged and reliable, but Honda Utility ATVs are also built to make your life easier, whether you're working the back 40 or your favorite trail, and we achieve this with some of the most revolutionary technology in the industry. Like Electric Power Steering, designed with torque and speed sensors to reduce steering effort (and rider fatigue) when the going gets tough. Independent Rear Suspension (IRS) that allows both rear wheels to move independently, helping you maintain traction and control even in rough terrain.

And there's a transmission for every type of use. Our continuously variable, fully automatic Hondamatic™ transmission (available on the Foreman Rubicon), is the smoothest ATV transmission you'll ever experience. The three-speed Honda Automatic transmission (an automotive-style torque converter) is available on our FourTrax Rincon. And the Rancher AT has the Honda automatic dual-clutch, five-speed transmission, which features one of the slickest- and quickest-shifting gearboxes on dirt.

And this is just for starters, as our feature-packed machines are all built with the same purpose in mind: to work and play hard so you don't have to.

Our engineers work hard, so you don't have to.

The new Foreman line is a great example of how smarter is better. The combination of this year's new fuel-injection system and revised suspension team up with such proven Foreman features as our solid rear axle for better towing performance, Honda's exclusive longitudinally mounted engines for superior driveline efficiency, and Honda's unmatched reputation for durability, quality, and reliability.

Important Safety Information
Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly.

2012 Honda FourTrax Foreman 4x4 ES TRX500FE Features and Benefits:

New for 2012
- All-new liquid-cooled 475cc single-cylinder OHV four-stroke engine with a higher compression ratio delivers plenty of hard-working power.
- New fuel injection system features a 36mm throttle body and provides instant throttle response, consistent performance at high altitude, and hassle-free cold-weather starting.
- All-new rear suspension system combines a new steel swingarm design with a single high-quality rear shock absorber to produce 6.9 inches of supple, well-controlled travel.
- New, larger 196mm dual front hydraulic disc brakes.
- New multi-function LCD digital meter is compact, tough and waterproof, and features large readouts for fuel gauge, gear position, speedometer, odometer, tripmeter, hourmeter and oil change reminder. Meter housing includes LED lights for Reverse, Neutral, oil temperature and front differential indicator.
- New body styling with a tough, rugged and more aggressive look featuring large oversized fenders front and rear for exceptional mud and splash protection.

Features
- Revolutionary Electric Power Steering (EPS).
- Electric Shift Program (ESP) provides the convenience of push-button shifting.
- TraxLok® selectable 2WD/4WD system.
- Large cargo racks front and rear allow payloads of 66 and 133 pounds, respectively and feature an improved design for easier lashing of cargo.
- Heavy-duty trailer hitch with towing capacity of 850 pounds.
- Unique, rear-opening storage compartment allows access when rack is loaded.
- Waterproof accessory socket provides 12-volt, 10-amp power with a built-in fuse.
- Water-resistant left-side glove-box compartment.
- Triple headlight system with single 45-watt upper light and dual 30-watt lower lights with multi-reflector lenses for optimal light distribution plus an LED brake light/taillight.
- Uniquely designed floorboards allow the rider's feet to grip the footrests while keeping mud and debris away.
- Assembled in Timmonsville, South Carolina.
- Transferable one-year limited warranty; extended coverage available with a Honda Protection Plan.

Engine Drivetrain
- Liquid-cooled 475cc single-cylinder OHV four-stroke engine is longitudinally mounted in the frame allowing direct driveshaft alignment to front and rear wheels for improved drivetrain efficiency.
- USDA-qualified spark arrester/muffler is constructed of stainless steel.
- Super-heavy-duty automatic clutch for excellent driveability and towing capacity.
- Convenient five-speed transmission with Reverse.
- Maintenance-free shaft drive with torque-sensing front differential routes power directly from the longitudinally mounted engine without inefficient directional changes.
- Powerful 416-watt AC generator.
- New pre-filled GYZ16H 16-Ah battery.

Chassis/Suspension
- Rugged frame and suspension provide an exceptional 7.6 inches of ground clearance.
- Independent double-wishbone front suspension uses new, high-quality shock absorbers to provide 6.7 inches of travel while a new steel swingarm design produces 6.9 inches of rear wheel travel.
- Rugged, large-diameter Maxxis 25 x 8-12 front, 25 x 10-12 rear tires provide added ground clearance while maintaining precise handling.
- Large 196mm dual front hydraulic disc brakes and sealed 180mm mechanical rear drum.
- Dual front disc-brake calipers feature a patented built-in scraper system to remove mud and snow from inside the front wheel to help prevent buildup between caliper and rim to ensure consistent braking performance.
- Brake pads feature thick, long-wear material with improved mud durability, feel and control. Pads have an internal scraper that gives audible warning when pad life is low.

Honda Genuine Accessories *
- Winch Kit, Cargo Boxes (Front/Rear), Soft Rack Bags (Front/Rear), Fender Bag, Frame Skid Plate, Front A-Arm Guards, Rear Swingarm Guard, Auxiliary Light Interupt Switch, Recoil Stater Kit, Storage Cover

* WARRANTY: Because we're so confident in the quality of each of our Honda Genuine accessories, we're pleased to offer one of the best warranties in the industry. One-year warranty begins on the day accessories are purchased by the customer.

2012 Honda FourTrax Foreman 4x4 Options & Pricing:
Honda's line of FourTrax Foreman ATVs give you what you want, without breaking the bank. In terms of hard-working value, the Foreman line is unbeatable, offering proven features like powerful 475cc overhead-valve engines with fuel injection, TraxLok® selectable 2WD/4WD, and a dependable five-speed transmission. Sick of fighting ruts, rocks, and sidehills? Then get a Foreman with Honda's revolutionary Electric Power Steering (EPS)—the smartest, most innovative power steering you'll ever experience on an ATV. Our push-button Electric Shift Program (ESP) is a big boost when you're wearing winter boots covered with mud. And best of all, they feature our new styling for 2012.

FourTrax Foreman 4x4
MSRP $6,899*
Features & Options
- Programmed Fuel Injection (PGM-FI)
- 475cc liquid-cooled single-cylinder four-stroke engine
- TraxLok® selectable 2WD/4WD

FourTrax Foreman 4x4 ES
MSRP $7,099*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Shift Program

FourTrax Foreman 4x4 with Power Steering
MSRP $7,499*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- Electric Power Steering

FourTrax Foreman 4x4 ES with Power Steering
MSRP $7,699*
Features & Options
- TraxLok® selectable 2WD/4WD
- 475cc liquid-cooled fuel-injected engine
- ESP and EPS

Specifications
US MSRP*: $7,099 USD

Model: TRX500FE / TRX500FPE (with EPS)
Engine Type: 475cc liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 92mm x 71.5mm
Compression Ratio: 9.5:1
Induction: Keihin 36mm throttle body
Ignition: Full-transistorized type
with electronic advance
Starter: Electric with optional auxiliary recoil
Clutch: Automatic
Transmission: ESP five-speed with Reverse
Driveline: Direct front and rear driveshafts with TraxLok and torque-sensitive front differential

Suspension
Front: Independent double-wishbone; 6.7 inches travel
Rear: Swingarm with single shock; 6.9 inches travel

Brakes
Front: Dual hydraulic 196mm disc
Rear: Sealed 180mm mechanical drum

Tires
Front: 25 x 8-12
Rear: 25 x 10-12
Length: 83.7 inches
Width: 47.4 inches
Height: 47.1 inches
Seat Height: 34.7 inches
Ground Clearance: 7.6 inches
Wheelbase: 50.4 inches
Turning Radius: 10.5 feet
Fuel Capacity: 4.0 gallons, including 1.2-gallon reserve
Colors: Red, Olive, Natural Gear™ Camouflage
Curb Weight*: 628 pounds / 644 pounds




Auto Accident Lawyers Information

The Law Offices of
WILSON, KEHOE and Winingham LLC
www.wkw.com
Indiana Brain Injury Lawyer Wilson, Kehoe & Winingham Website - Brain Injury, Spinal Injury, Medical Malpractice, Car Accidents

Indianapolis
2859 N Meridian St
Indianapolis, IN 46208
Telephone: (317) 920-6400
Email: help@wkw.com

Richmond, Indiana
2901 East Main Street
Richmond, IN 47374
Telephone: (765) 962-9113
Email: help@wkw.co
